Nissan Rogue Owners Manual: Heater and Air Conditioner (manual) (if so equipped)

Nissan Rogue Owners Manual / Monitor, climate, audio, phone and voice recognition systems / Heater and Air Conditioner (manual) (if so equipped)

Heater and Air Conditioner
Heater and Air Conditioner

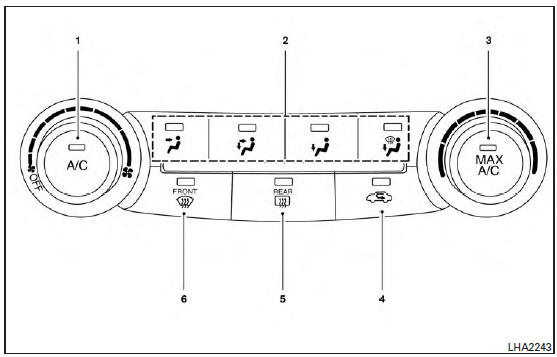

  1. Fan speed control / system OFF dial / air conditioning (A/C) button
  2.   Air flow control buttons
  3.  Temperature control dial / MAX A/C button
  4.  Air recirculation button
  5.   Rear window and outside mirror (if so equipped) defroster button
  6.   Front windshield defrost button
WARNING
  •  The air conditioner cooling function operates only when the engine is running.
  •  Do not leave children or adults who would normally require the assistance of others alone in your vehicle. Pets should also not be left alone. They could accidentally injure themselves or others through inadvertent operation of the vehicle. Also, on hot, sunny days, temperatures in a closed vehicle could quickly become high enough to cause severe or possibly fatal injuries to people or animals.
  •  Do not use the recirculation mode for long periods as it may cause the interior air to become stale and the windows to fog up.

NOTE:

Vents
Side Adjust air flow direction by moving the vent slides. Open or close the vents by using the dial. Move the dial toward the to open the vents or toward the to close them. Center Re ...

Controls
Fan control dial The fan control dial turns the fan on and off, and controls fan speed. Air flow control buttons The air flow control buttons allow you to select the air flow outlets. MAX A/C †...
