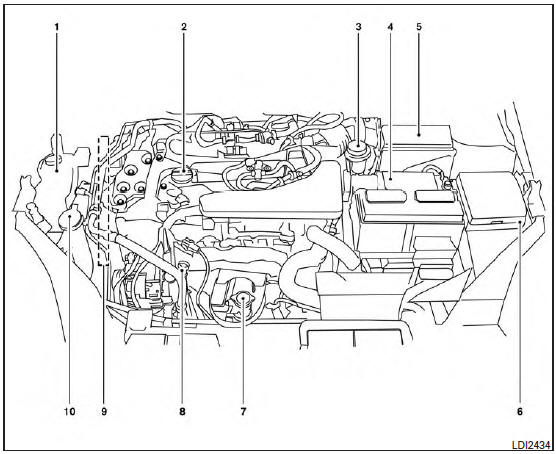

Engine compartment check locations
QR25DE engine
* Engine cover removed for clarity.
Fluid cooler hose
Exploded View
COMPONENT PARTS LOCATION
Transaxle assembly
Fluid cooler hose A
Hose clamp
Fluid cooler hose B
CVT oil warmer
To radiator
: Always replace after every
disassembly.
Removal and Installation
REMOVAL
NOTE:
When removing components such as hoses, tubes/lines, ...
P0462, P0463 fuel level sensor
DTC Description
DTC DETECTION LOGIC
This diagnosis indicates the former, to detect open or short circuit
malfunction.
DTC No.
CONSULT screen terms
(Trouble diagnosis content)
DTC detecting condition
P0462
FUEL LEVL SEN/CIRC
(Fuel level sensor ″A″ circu ...
Rear wiper motor
Exploded View
Rear wiper motor
Back door
Rear wiper motor harness
Removal and Installation
REMOVAL
Remove rear wiper arm. Refer to WW-69, "Removal and Installation".
Remove back door finisher. Refer to INT-38, "Removal and
Installation".
& ...
