Nissan Rogue Service Manual: CVT shift selector

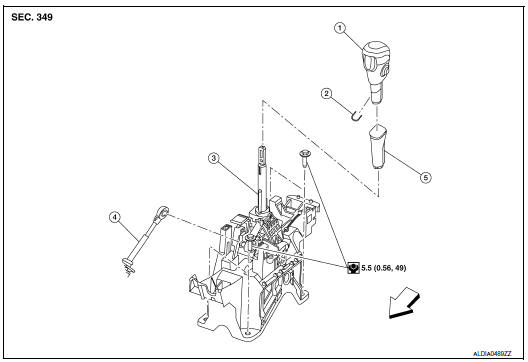

Exploded View
- Shift selector knob
- Lock pin
- Shift selector assembly
- Control cable
- Shift selector knob cover
Front
Removal and installation
REMOVAL
- Apply the parking brake.
CAUTION:
Make sure the vehicle cannot move with the parking brake applied.
- Move the shift selector with the following procedure.

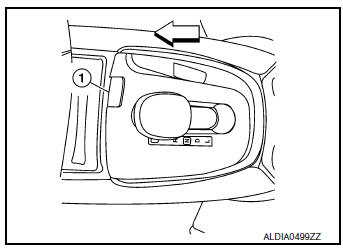

- Remove shift lock override button cover (1) using suitable tool.
: Front

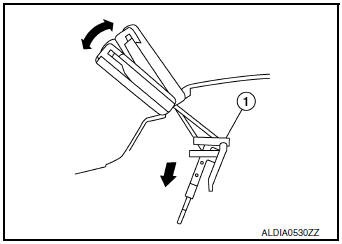

- Insert suitable tool into opening to depress the shift lock override
button (1) in the direction (
) shown. Move shift selector
to “n” position while depressing shift lock override button.
Front
- Remove the shift selector knob with the following procedure.

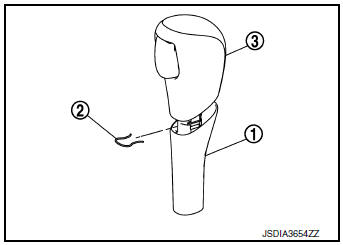

- Slide the selector lever knob cover (1) down.
CAUTION:
Do not damage the knob cover.
- Pull out the lock pin (2) from the selector lever knob (3).
- Pull the selector lever knob and the selector lever knob cover
upwards to remove them.
- Remove the center console assembly. Refer to IP-18, "Removal
and Installation".
- Shift the selector lever to “P” position.

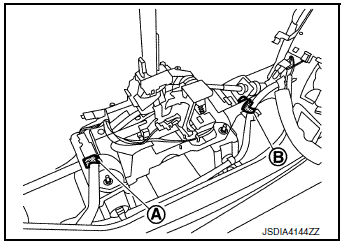

- Disconnect the shift selector connector (A) and remove harness
clip (B).

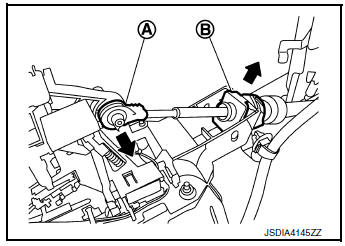

- Disconnect the tip (A) of control cable and remove socket (B)
from the shift selector assembly.

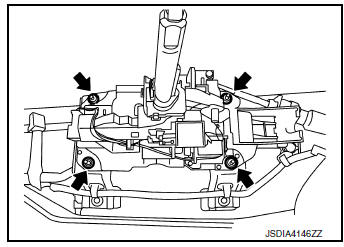

- Remove the shift selector assembly nuts (
) and remove the
shift selector assembly from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
- Pay attention to the following when connecting the control cable
to the shift selector assembly.

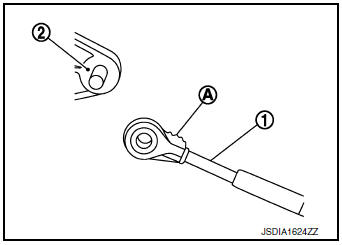

- When connecting the control cable (1) to the shift selector
assembly (2), face the grooved surface of the rib (A) up and
insert the control cable until it stops.
NOTE:
Apply multi-purpose grease to control cable eye before installation.

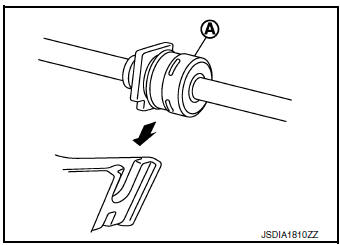

- Install the socket (A) onto the shift selector assembly.
CAUTION:
- Place the socket onto the shift selector assembly, then
fasten it in place from above.
- Check that the pulling on the socket does not disconnect
it.
- Follow the procedure below and place the selector lever knob onto the
shift selector.
- Install the lock pin (2) onto the selector lever knob (3).
- Install the knob cover (1) onto the selector lever knob.
- Shift the selector lever to “N” position.
- Insert the selector lever knob into the selector lever until a
slight
touch is felt.
- Press and hold the selector lever knob button and insert selector
lever knob into selector lever until it clanks.
CAUTION:
Do not strike the selector lever knob to press it into place.
- After installing selector lever knob, pull the knob to check that
it
does not become disconnected
Inspection
INSPECTION AFTER INSTALLATION
- Check the shift selector position. Refer to TM-92, "Inspection".
- Check that shift lock can be forcible release. Refer to TM-29,
"SHIFT LOCK SYSTEM : System Description".
Exploded View
Shift selector
Control cable
Retainer grommet
Lock plate
Bracket
Manual lever
Transaxle assembly
Front
Removal and Installation
CAUTION:
Always apply ...
