Nissan Rogue Service Manual: Rear power window switch

Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Power Window Control System / DTC/circuit diagnosis / Rear power window switch

Description

Rear power window motor will be operated if rear power window switch is operated.

Component Function Check

1. CHECK REAR POWER WINDOW SWITCH FUNCTION

Check rear power window motor operation with rear power window switch.

Is the inspection result normal? YES >> Rear power window switch is OK.

NO >> Refer to PWC-36, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK REAR POWER WINDOW SWITCH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2. Disconnect rear power window switch connector.
  3.  Turn ignition switch ON.

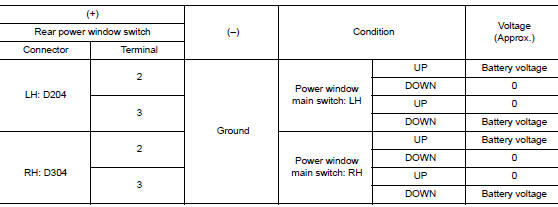

  4.  Check voltage between rear power window switch harness connector and ground

Check rear power window switch input signal

Is the inspection result normal? YES >> GO TO 2.

NO >> GO TO 3.

2.CHECK REAR POWER WINDOW SWITCH

Check rear power window switch.

Refer to PWC-37, "Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace rear power window switch. Refer to PWC-65, "Removal and Installation".

3.CHECK REAR POWER WINDOW SWITCH CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect main power window and door lock/unlock switch connector.

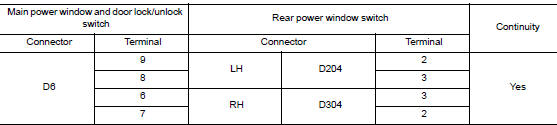

  3.  Check continuity between main power window and door lock/unlock switch harness connector and rear power window switch harness connector.

Check rear power window switch circuit

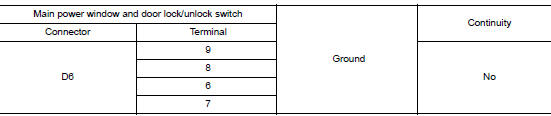

  1. Check continuity between main power and door lock/unlock switch harness connector and ground.

Check rear power window switch circuit

Is the inspection result normal? YES >> Replace main power window and door lock/unlock switch.Refer to PWC-64, "Removal and Installation".

NO >> Repair or replace harness.

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

Component Inspection

1.CHECK REAR POWER WINDOW SWITCH

  1.  Turn ignition switch OFF.
  2.  Disconnect rear power window switch connector.

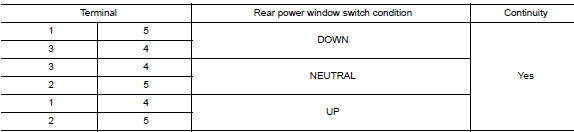

  3.  Check rear power window switch terminals under the following conditions.

Check rear power window switch

Is the inspection result normal? YES >> Inspection End.

NO >> Replace rear power window switch. Refer to PWC-66, "Removal and Installation".
