Nissan Rogue Service Manual: P0711 transmission fluid temperature sensor A

DTC Description

DTC DETECTION LOGIC

DTC CONSULT screen terms (Trouble diagnosis content) DTC detection condition
P0711 FLUID TEMP SENSOR A (Transmission Fluid Temperature Sensor A Circuit Range/Performance) When any of 1 or 2 is satisfied:
  1. Under the following diagnosis conditions, CVT fluid temperature does not rise to 10°C (50°F) after driving for a certain period of time with the TCM-received fluid temperature sensor value between − 40°C (−40°F) and 9°C (48.2°F).
  •  TCM power supply voltage: More than 11 V
  •  CAN communication is normal
  •  Engine speed: 450 rpm or more
  •  Accelerator pedal position: 3 deg. or more
  •  Vehicle speed: 10 km/h (7 MPH) or more
  •  U0100, P0705 and P0706 are not detected.
  •  Selector lever: “D” position
  1.  When the condition of the final judgment is satisfied after satisfying that of the provisional judgment:
  •  Provisional judgment: All of the following conditions are satisfied within 2 seconds after the ignition switch is turned ON.
  • U0073, U0100, P0712 and P0713 are not detected.
  •  CAN communication is normal.
  •  TCM power supply voltage: More than 11 V
  •  The difference between CVT fluid temperature and engine coolant temperature is 55°C (131°F) or more, or −27°C (−16°F) or less.
  •  Final judgment: When all of the following conditions are satisfied and this state is maintained for 300 seconds:
  •  ECM is normal.
  •  Provisional judgment is satisfied.

POSSIBLE CAUSE

CVT fluid temperature sensor

FAIL-SAFE

DTC CONFIRMATION PROCEDURE

CAUTION: Always drive vehicle at a safe speed.

1.PREPARATION BEFORE WORK

If another "DTC CONFIRMATION PROCEDURE" occurs just before, turn ignition switch OFF and wait for at least 10 seconds, then perform the next test.

>> GO TO 2.

2.INSPECTION START

Is it necessary to erase permanent DTC? YES >> GO TO 3.

NO >> GO TO 7.

3.CHECK DTC (ECM AND TCM)

Check the DTC.

Is any DTC other than “P0711” detected? YES >> Check DTC detected item. Refer to EC-93, "DTC Index" (ECM), EC-93, "DTC Index" (TCM).

NO >> GO TO 4.

4.PERFORM DTC CONFIRMATION PROCEDURE (PART 1)

TESTING CONDITION:

With CONSULT

  1.  Move the vehicle to a cool place.

    NOTE: Cool the vehicle in an environment of ambient air temperature between −10°C (14°F) and 35°C (95°F).

  2.  Turn ignition switch OFF and leave the vehicle for 12 hours.

    CAUTION: Never turn ignition switch ON during this procedure.

    NOTE: The vehicle must be cooled with the food open.

  3.  Turn ignition switch ON.

    CAUTION: Never start the engine.

  4.  Select “Data Monitor” in “TRANSMISSION”.
  5.  Select “FLUID TEMP”.
  6.  Record CVT fluid temperature.
  7.  Start engine and let it idle for 5 minutes or more.

    CAUTION: Never turn ignition switch OFF during idling.

  8.  Check 1st trip DTC.

With GST

  1.  Move the vehicle to a cool place.

    NOTE: Cool the vehicle in an environment of ambient air temperature between −10°C (14°F) and 35°C (95°F).

  2. Turn ignition switch OFF and leave the vehicle for 12 hours.

    CAUTION: Never turn ignition switch ON during this procedure.

    NOTE: The vehicle must be cooled with the food open.

  3.  Start engine and let it idle for 5 minutes or more.

    CAUTION: Never turn ignition switch OFF during idling.

  4.  Check 1st trip DTC.

Is “P0711” detected? YES >> Go to TM-119, "Diagnosis Procedure".

NO-1 (With CONSULT)>>GO TO 5.

NO-2 (With GST)>>GO TO 6.

5.CHECK CVT FLUID TEMPERATURE

With CONSULT

  1.  Select “Data Monitor” in “TRANSMISSION”.
  2.  Select “FLUID TEMP”.

Is the value of “FLUID TEMP” 10°C (50°F) or more? YES >> INSPECTION END

NO >> GO TO 6.

6.PERFORM DTC CONFIRMATION PROCEDURE (PART 2)

With CONSULT

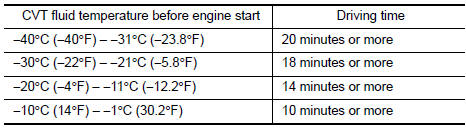

  1.  Drive the vehicle for the total minutes specified in the Driving time column below with the following conditions satisfied.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

Perform DTC confirmation procedure (part 2)

  1. Stop the vehicle.
  2. Check the first trip DTC.

With GST

  1.  Drive the vehicle and maintain the following conditions for 20 minutes or more.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

  1. Stop the vehicle.
  2.  Check the first trip DTC.

Is “P0711” detected? YES >> Go to TM-119, "Diagnosis Procedure".

NO-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

NO-2 >> Confirmation after repair: INSPECTION END

7.PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

  1.  Turn ignition switch OFF and cool the engine.
  2.  Turn ignition switch ON.

    CAUTION: Never start the engine.

  3.  Select “Data Monitor” in “TRANSMISSION”.
  4.  Select “FLUID TEMP”.
  5.  Record CVT fluid temperature.
  6.  Start the engine and wait for at least 2 minutes.

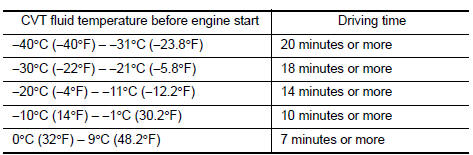

  7.  Drive the vehicle for the total minutes specified in the Driving time column below with the following conditions satisfied.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

Perform DTC confirmation procedure

Perform DTC confirmation procedure

  1. Stop the vehicle.
  2.  Check the first trip DTC.

With GST

  1.  Turn ignition switch OFF and cool the engine.
  2.  Start the engine and wait for at least 2 minutes.
  3.  Drive the vehicle and maintain the following conditions for 20 minutes or more.

Selector lever : “D” position
Accelerator pedal position : 1.0/8 or more
Vehicle speed : 10 km/h (7 MPH) or more

  1. Stop the vehicle.

    CAUTION: Never turn ignition switch OFF

  2.  Check the first trip DTC.

Is “P0711” detected? YES >> Go to TM-119, "Diagnosis Procedure".

NO >> GO TO 8.

8.CHECK CVT FLUID TEMPERATURE SENSOR

  1.  Turn ignition switch OFF.
  2.  Disconnect CVT unit connector.

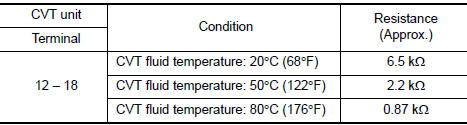

  3.  Check resistance between CVT unit connector terminals.

Check CVT fluid temperature sensor

Is the inspection result normal? YES-1 >> To check malfunction symptom before repair: Refer to GI-41, "Intermittent Incident".

YES-2 >> Confirmation after repair: INSPECTION END NO >> There is a malfunction of CVT fluid temperature sensor. Replace transaxle assembly. Refer to TM-220, "Removal and Installation".

Diagnosis Procedure

1.CHECK CVT FLUID TEMPERATURE SENSOR

  1.  Turn ignition switch OFF.
  2.  Disconnect CVT unit connector.
  3.  Check resistance between CVT unit connector terminals.

Is the inspection result normal? YES >> GO TO 2.

NO >> GO TO 4.

2. CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (CVT FLUID TEMPERATURE SENSOR) (PART 1)

  1.  Disconnect the TCM connector.

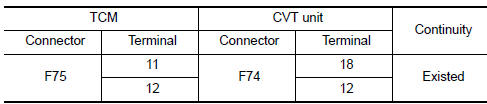

  2.  Check continuity between TCM harness connector terminals and CVT unit harness connector terminals.

Check circuit between TCM and CVT unit (CVT fluid temperature sensor) (part 1)

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace damaged parts.

3. CHECK CIRCUIT BETWEEN TCM AND CVT UNIT (CVT FLUID TEMPERATURE SENSOR) (PART 2)

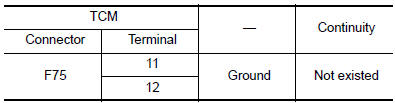

Check continuity between TCM harness connector terminals and ground.

Check circuit between TCM and CVT unit (CVT fluid temperature sensor) (part 2)

Is the inspection result normal? YES >> INSPECTION END

NO >> Repair or replace damaged parts.

4. CHECK DTC (TCM)

With CONSULT

  1.  Perform “DTC CONFIRMATION PROCEDURE”. Refer to TM-116, "DTC Description".
  2.  Select “Self Diagnostic Results” in “TRANSMISSION”.

Is “P0711” detected? YES >> There is a malfunction of the CVT fluid temperature sensor. Replace the transaxle assembly.

Refer to TM-220, "Removal and Installation".

NO >> INSPECTION END
