Symptom Table

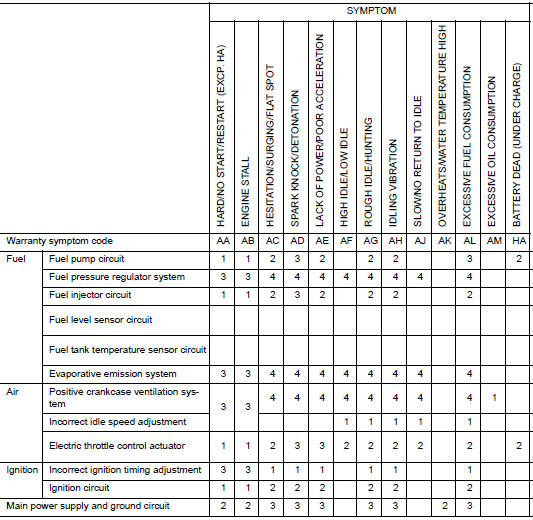

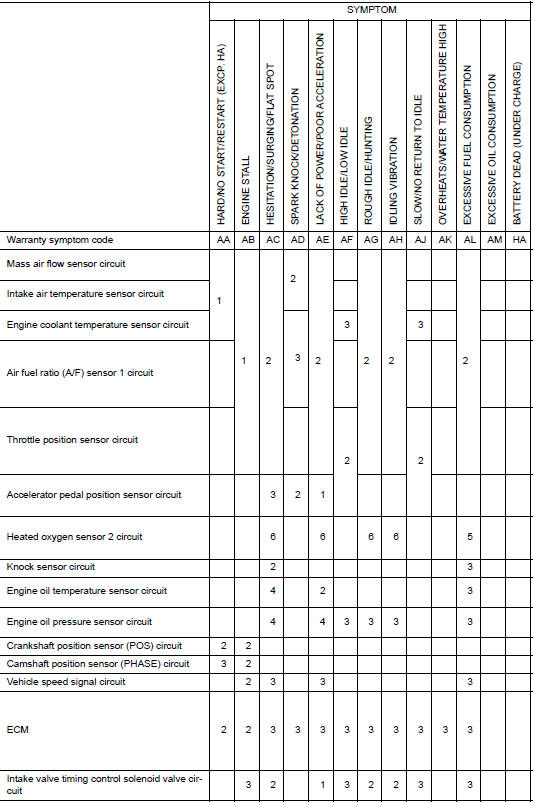

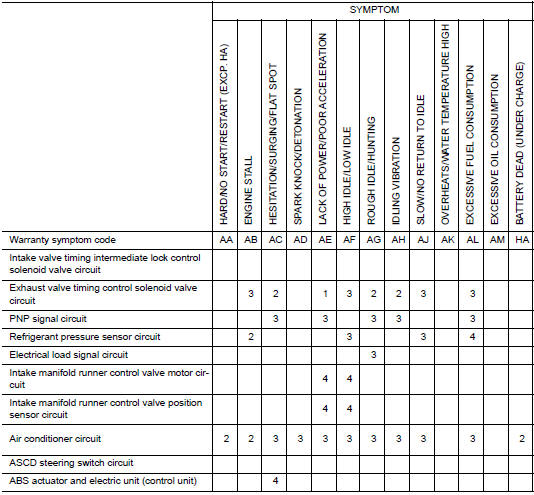

SYSTEM — BASIC ENGINE CONTROL SYSTEM
1 - 6: The numbers refer to the order of inspection.
(continued on next table)

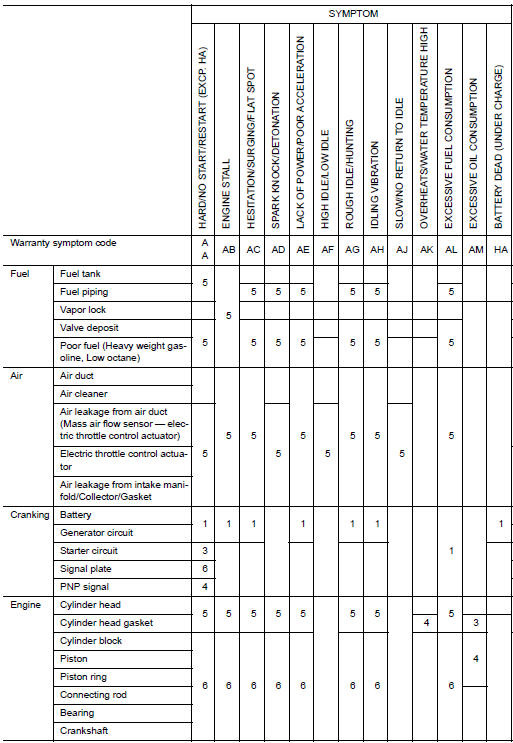

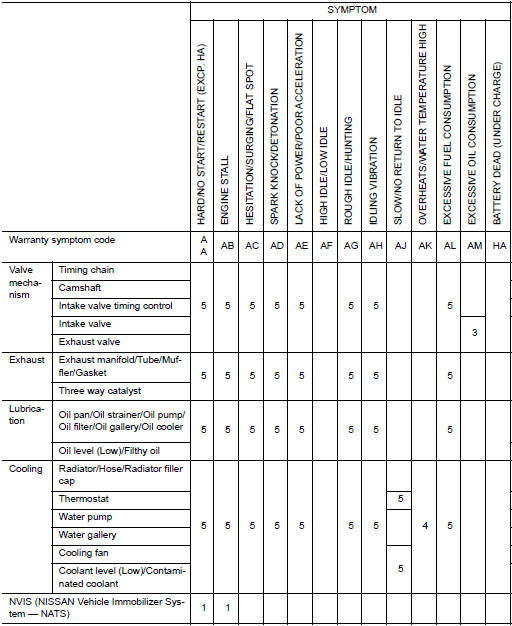

SYSTEM — ENGINE MECHANICAL & OTHER
1 - 6: The numbers refer to the order of inspection.
