Nissan Rogue Service Manual: Ecu diagnosis information

Nissan Rogue Service Manual / Engine / Engine Control System / Ecu diagnosis information

ECM

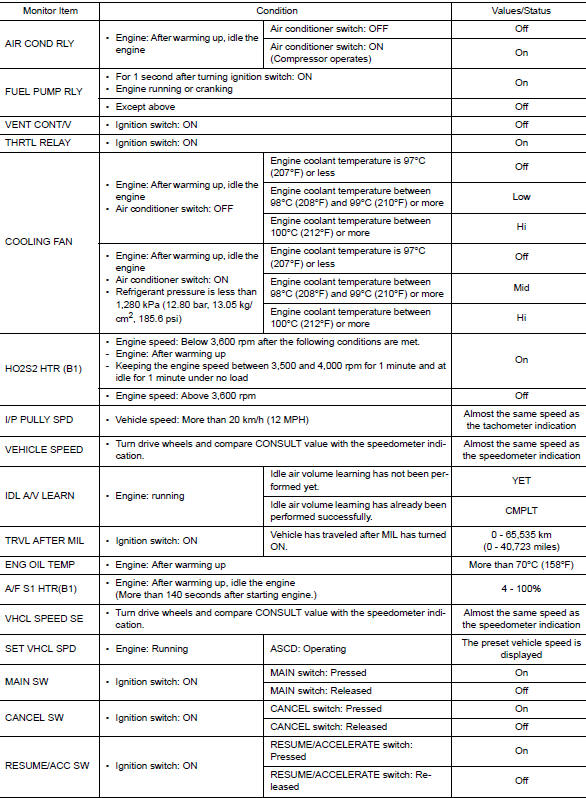

Reference Value

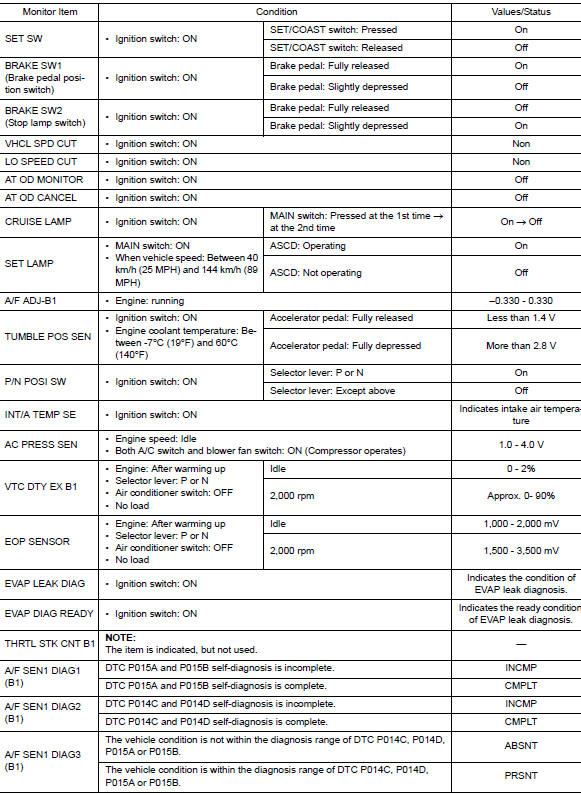

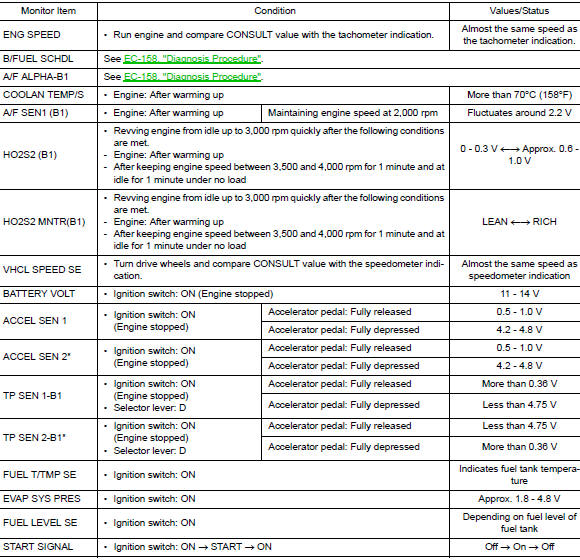

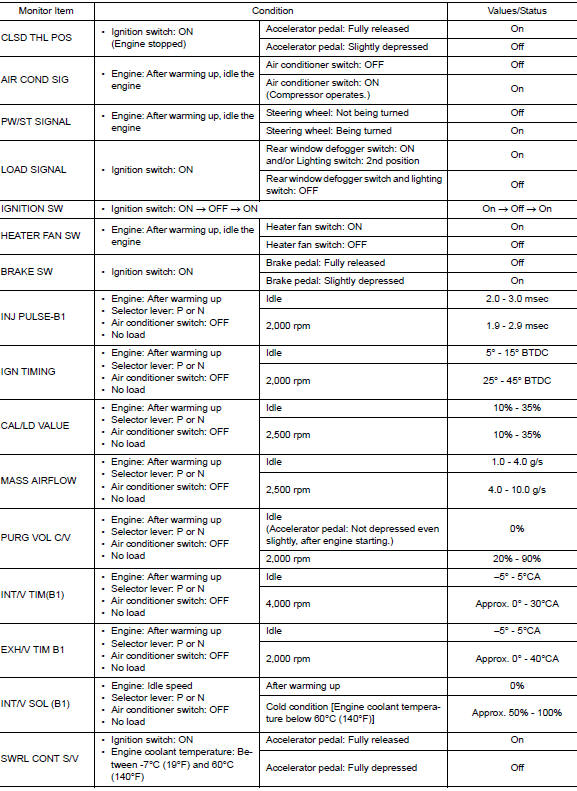

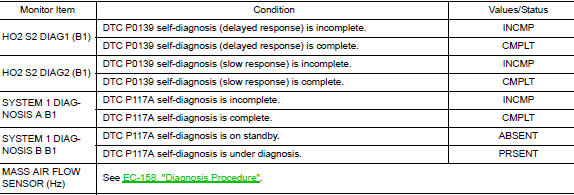

VALUES ON THE DIAGNOSIS TOOL

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Numerical values in the following table are reference values.
These values are input/output values that ECM receives/transmits and may differ from actual operations.

Example:
The ignition timing shown by the timing light may differ from the ignition timing displayed on the data monitor.

This occurs because the timing light shows a value calculated by ECM according to signals received from the cam shaft position sensor and other sensors related to ignition timing.

Reference Value

*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ from ECM terminals voltage signal.

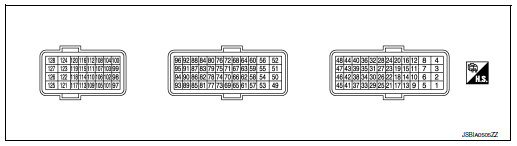

TERMINAL LAYOUT

Terminal layout

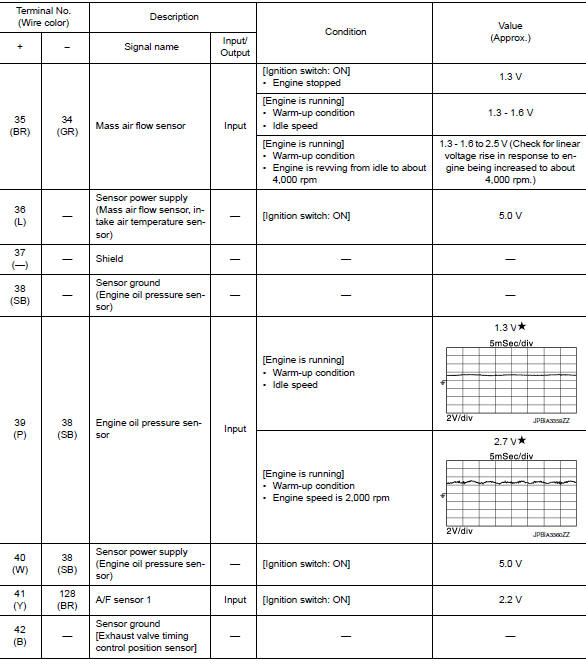

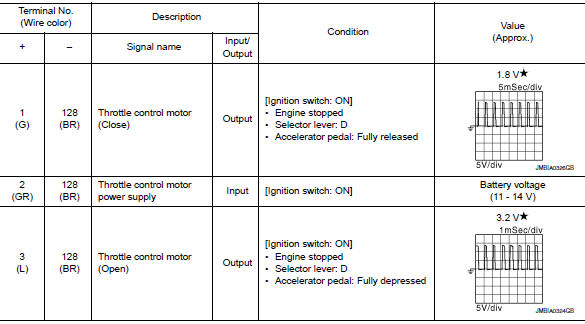

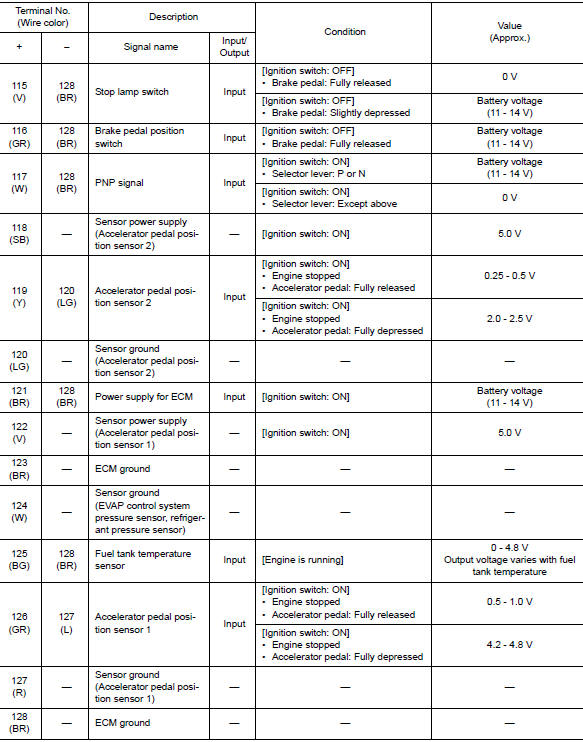

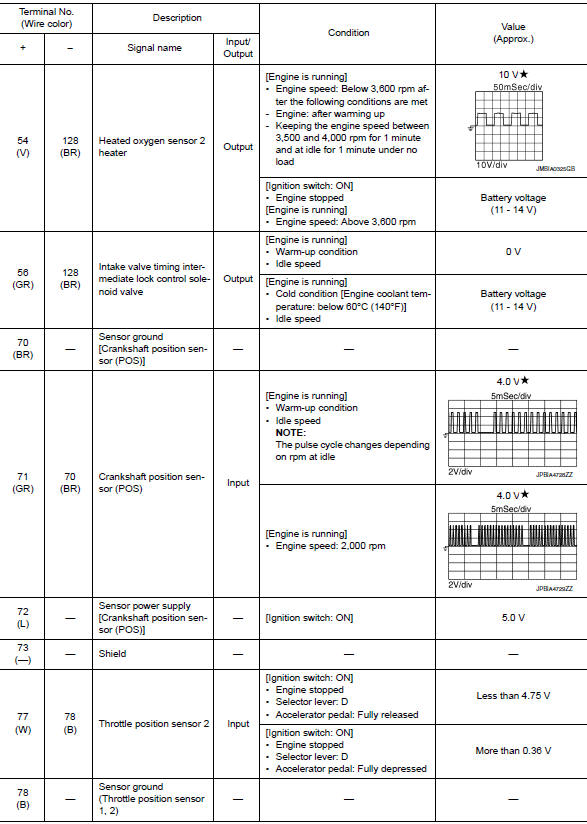

PHYSICAL VALUES

NOTE:

ECM is located in the engine room left side near battery.

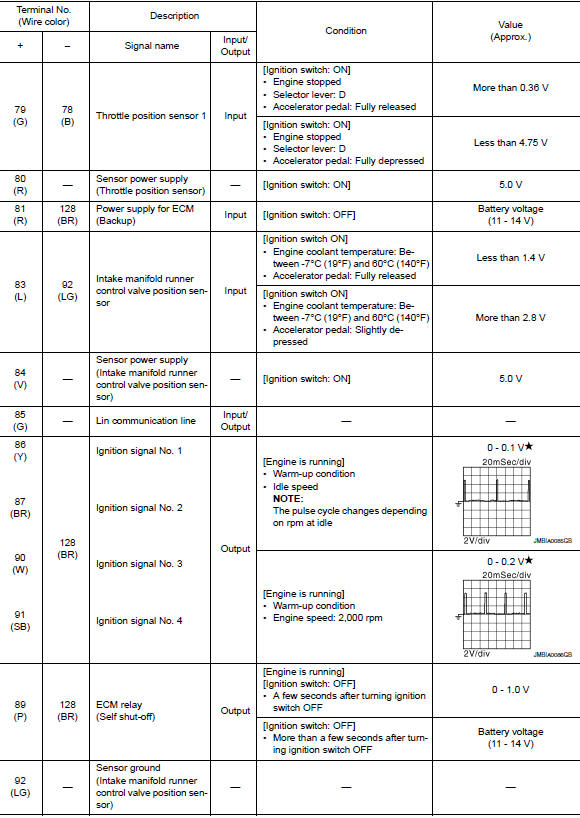

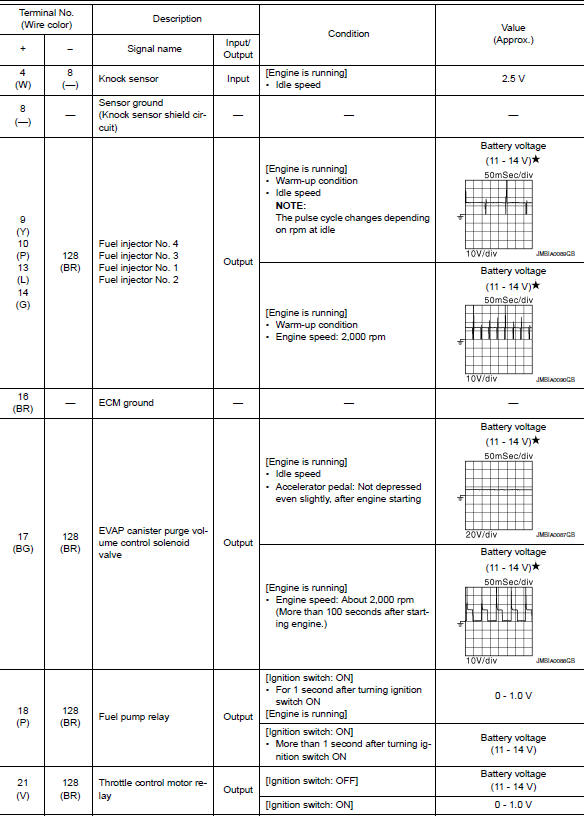

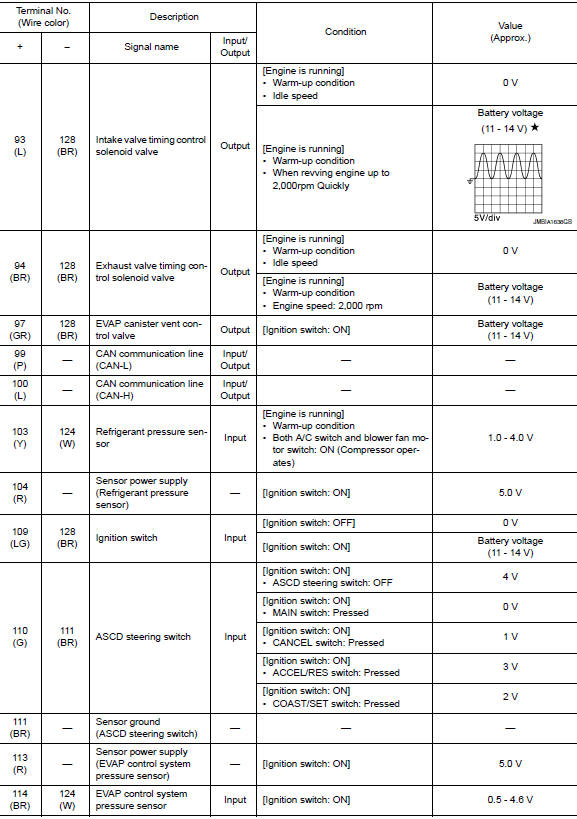

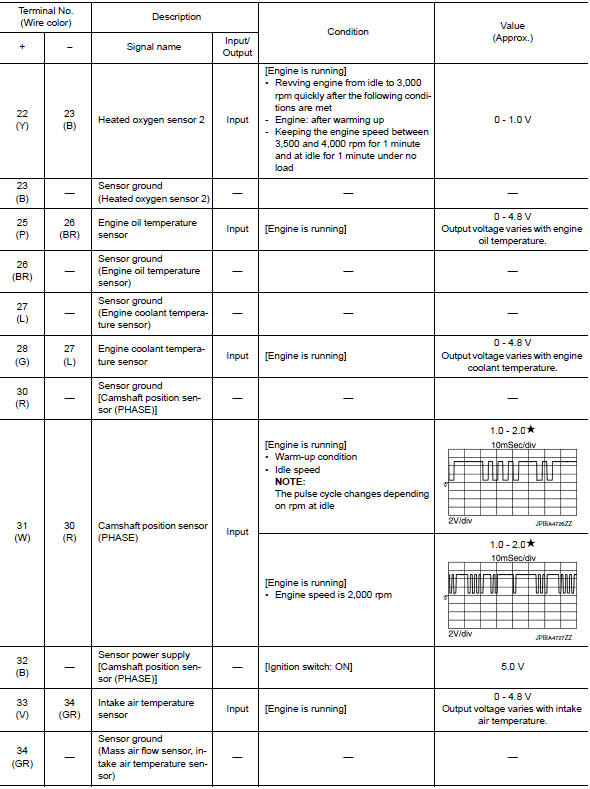

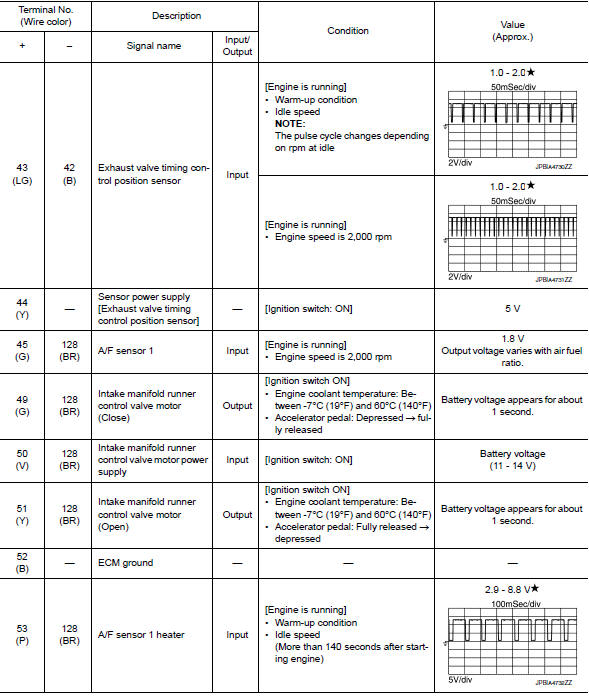

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT.

Physical values

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

Fail Safe

NON DTC RELATED ITEM

Detected items

Engine operating condition in fail-safe mode

Remarks

Malfunction indicator lamp circuit

Engine speed will not rise more than 2,500 rpm due to the fuel cut

When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is malfunction on engine control system.

Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means of operating fail safe function.

The fail safe function also operates when above diagnoses except MIL circuit are detected and demands the driver to repair the malfunction.

DTC RELATED ITEM

Description

When a DTC is detected, ECM executes a mode (in the Fail-safe mode) applicable to the DTC. The fail-safe mode has the preset traveling control mode (accelerator angle variation and engine output limit) and device fix mode

Fail safe mode		Vehicle behavior
Traveling control mode	Accelerator angle variation control	ECM controls the accelerator pedal depression speed to make it slower than actual speed. This causes a drop in accelerating performance and encourages the driver to repair malfunction. NOTE: ECM does not control the accelerator pedal releasing speed.
	Engine output control	ECM reduces the engine output, according to the rise in engine speed. This reduces the vehicle speed to encourage the driver to repair malfunction.
Device fix mode		This mode fixes the IVT control solenoid valve and the EVT control solenoid valve in the reference position. The intake manifold runner control valve motor is turned OFF (intake manifold runner control valve opens)

Fail Safe Pattern

Fail Safe Pattern

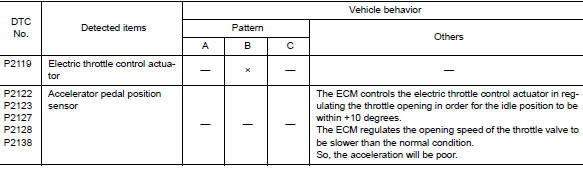

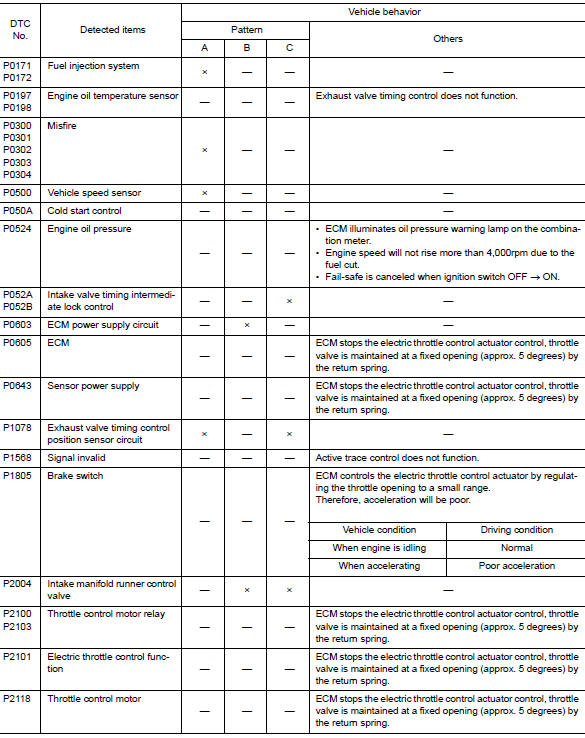

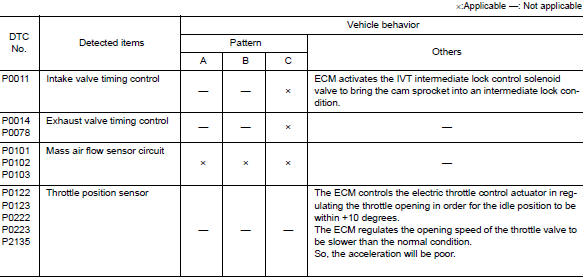

Fail Safe List

Fail Safe List

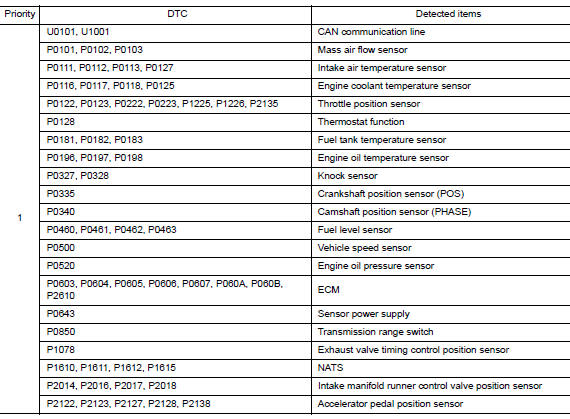

DTC Inspection Priority Chart

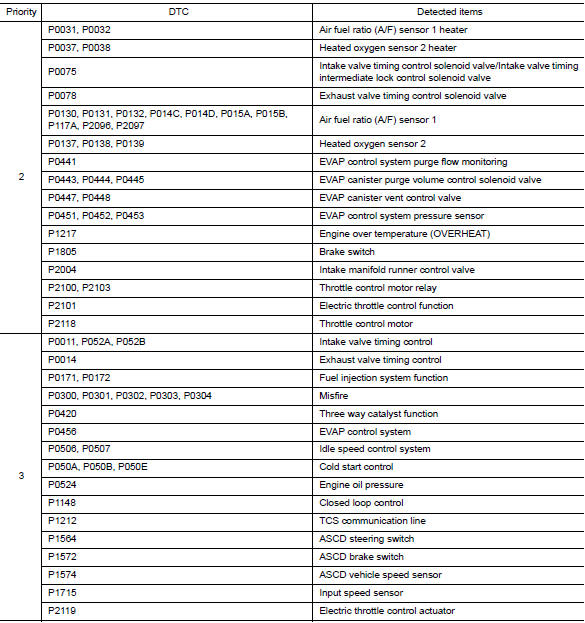

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.

DTC Inspection Priority Chart

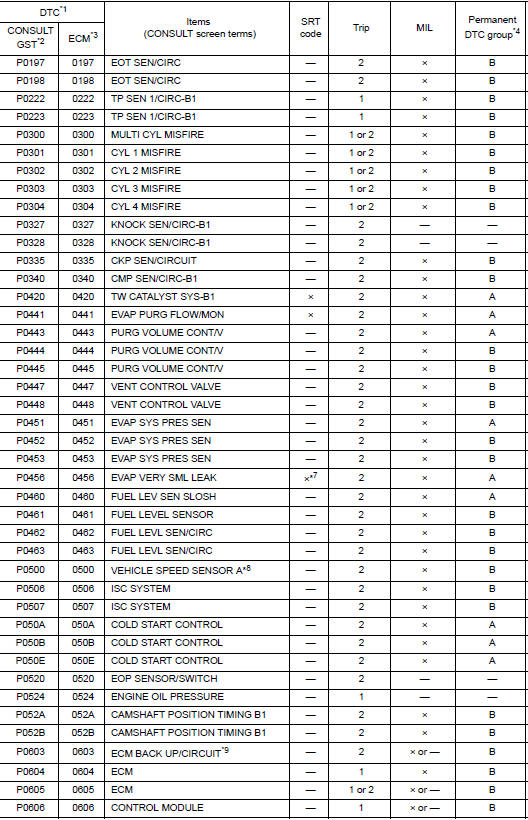

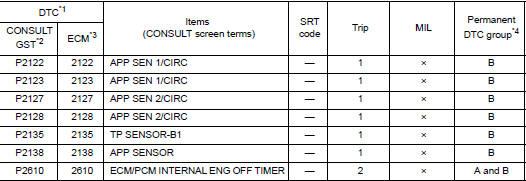

DTC Index

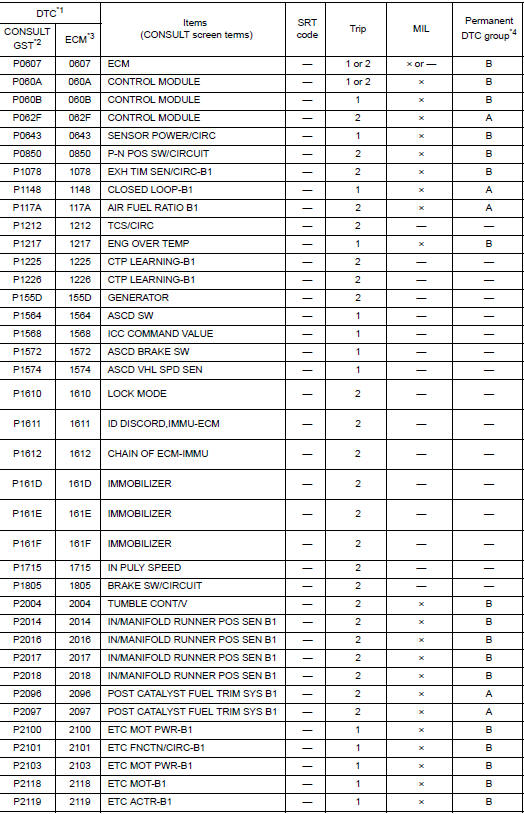

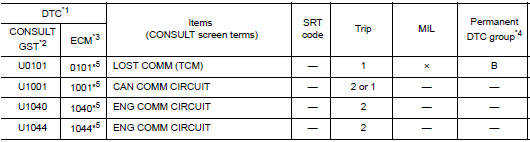

DTC Index

*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J1979/ ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: Refer to EC-151, "Description".
*5: The troubleshooting for this DTC needs CONSULT.
*6: When the ECM is in the mode that displays SRT status, MIL may blink. For details, Refer to EC-64, "On Board Diagnosis Function".
*7: SRT code will not be set if the self-diagnostic result is NG.
*8: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.
*9: This self-diagnosis is not for ECM power supply circuit, even though “ECM BACK UP/CIRCUIT” is displayed on CONSULT screen.

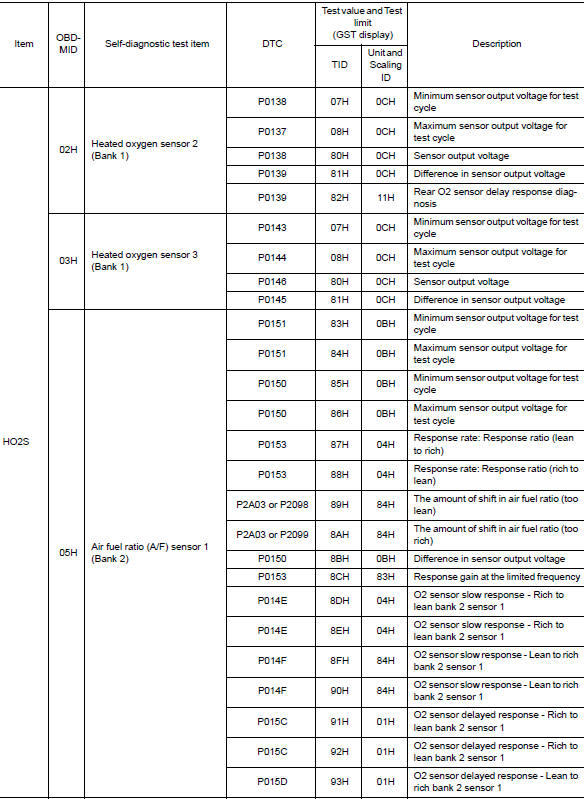

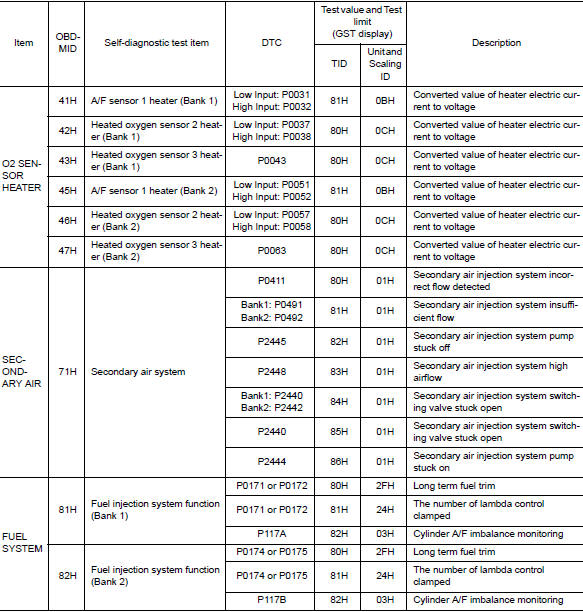

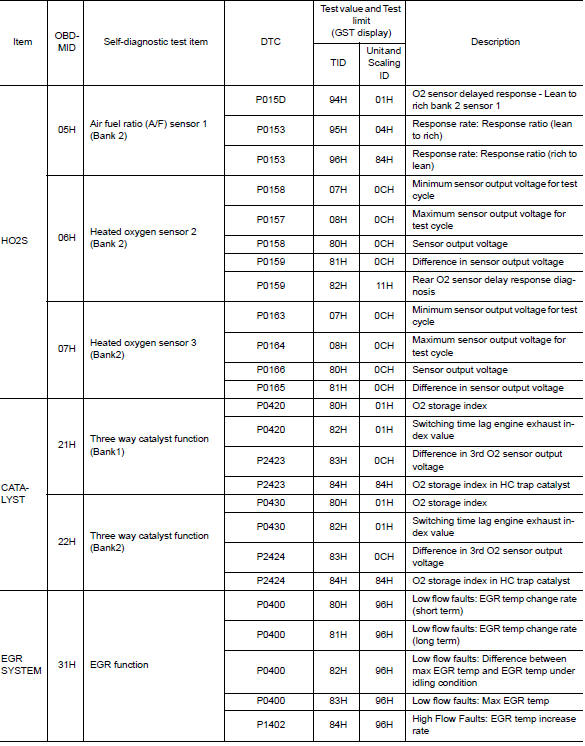

Test Value and Test Limit

The following is the information specified in Service $06 of SAE J1979/ISO 15031-5.

The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the maximum or minimum value and is compared with the test value being monitored.

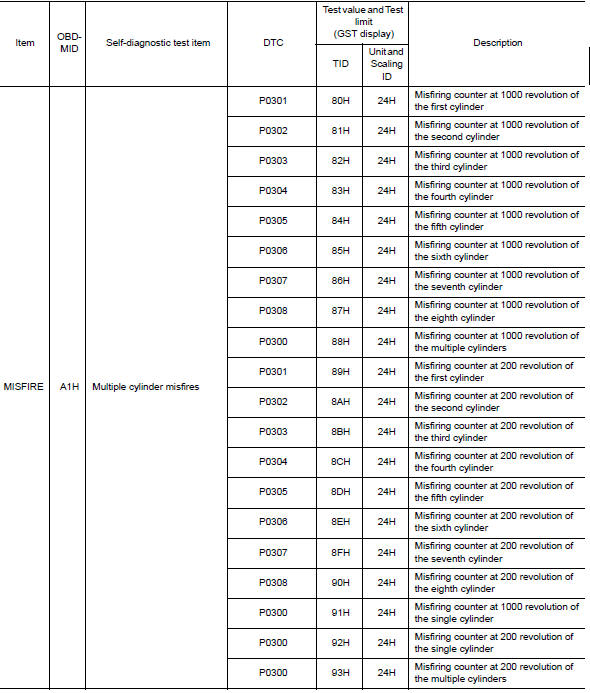

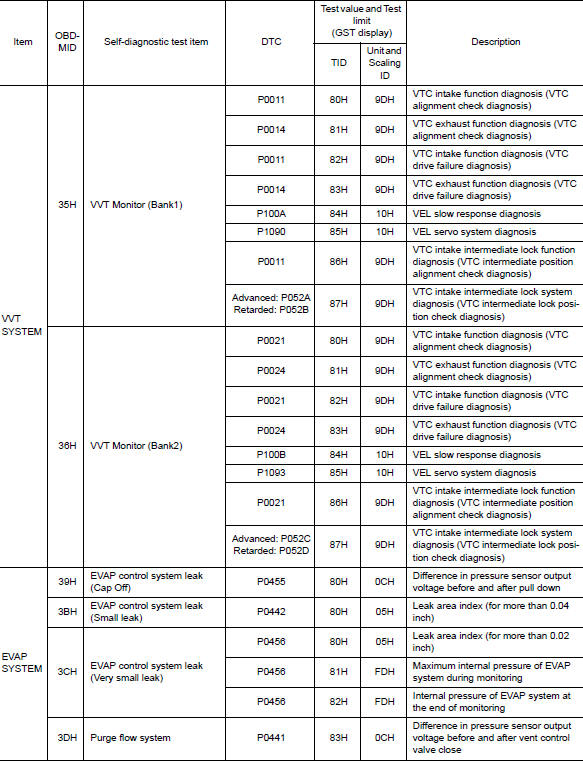

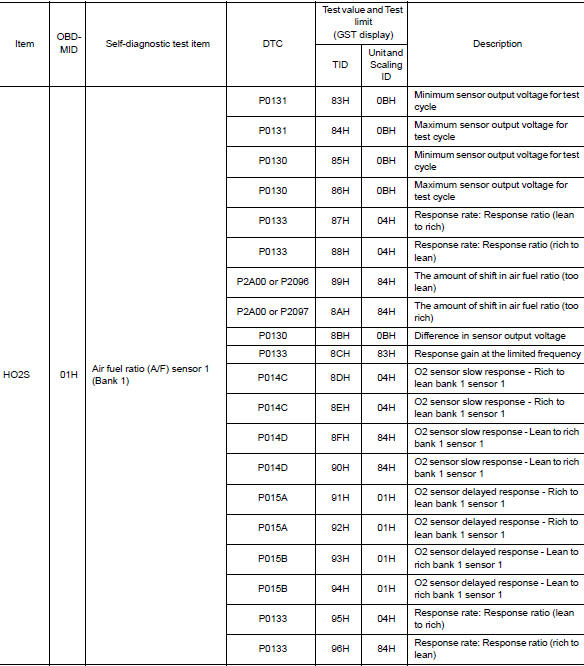

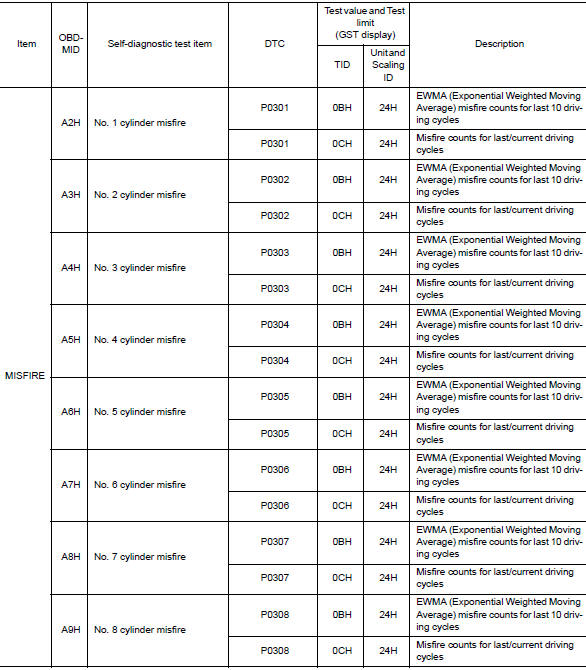

These data (test value and test limit) are specified by On Board Monitor ID (OBDMID), Test ID (TID), Unit and Scaling ID and can be displayed on the GST screen.

The items of the test value and test limit will be displayed with GST screen which items are provided by the ECM. (e.g., if bank 2 is not applied on this vehicle, only the items of bank 1 are displayed)

Test Value and Test Limit

Diagnosis system (ECM)

DIAGNOSIS DESCRIPTION DIAGNOSIS DESCRIPTION : 1st Trip Detection Logic and Two Trip Detection Logic When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data ...

Wiring diagram

ENGINE CONTROL SYSTEM Wiring Diagram ...
