Nissan Rogue Service Manual: ECU diagnosis information
SPORT MODE

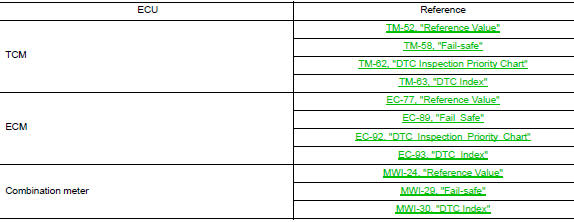

List of ECU Reference
System
SPORT MODE CONTROL
SPORT MODE CONTROL : System Description
SYSTEM DIAGRAM
SYSTEM DISCRIPTION
TCM receives SPORT mode switch signal (ON/OFF) from combination
meter via CAN communica ...
Wiring diagram
SPORT MODE SYSTEM
Wiring Diagram
...
Other materials:
DTC/circuit diagnosis
U1000 CAN COMM CIRCUIT
WITH INTELLIGENT KEY
WITH INTELLIGENT KEY : Description
Refer to LAN-8, "System Description".
WITH INTELLIGENT KEY : DTC Logic
DTC DETECTION LOGIC
NOTE:
U1000 can be set if a module harness was disconnected and reconnected, perhaps
during a repair. Confirm
...
U1010 control unit (CAN)
Description
Air bag diagnosis sensor performs self-tests on key ON. If CAN communication
failure within control unit is
detected, DTC is set.
DTC Logic
DTC DETECTION LOGIC
CONSULT name
DTC
DTC detecting condition
Repair order
CAN CONTROL UNIT FAILURE
...
Basic inspection
CONFIGURATION (CAN GATEWAY)
Work Procedure
1.WRITING MODE SELECTION
CONSULT Configuration
Select “Re/programming, Configuration” of CAN gateway.
When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.
2.PERFORM “AFTER REPLACE ECU” OF “READ / WRITE CONFIGURA ...
