DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

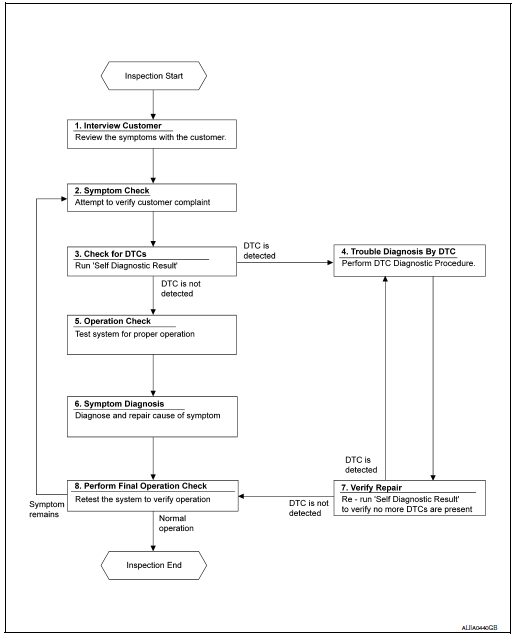

OVERALL SEQUENCE

Overall sequence

DETAILED FLOW

1.INTERVIEW CUSTOMER

Interview the customer to obtain as much information as possible about the conditions and environment under which the malfunction occurred.

>> GO TO 2.

2.SYMPTOM CHECK

Verify symptoms.

>> GO TO 3.

3.CHECK FOR DTCS

With CONSULT

Turn ignition switch ON.
Select “Self Diagnostic Result” mode of “HVAC” using CONSULT.
Check DTC.

Is any DTC detected? YES >> GO TO 4.

NO >> GO TO 5.

4.PERFORM DTC DIAGNOSTIC PROCEDURE

Perform the diagnostic procedure for the detected DTC. Refer to HAC-32, "DTC Inspection Priority Chart".

>> GO TO 7.

5.OPERATION CHECK

Perform the operation check. Refer to HAC-48, "Work Procedure".

>> GO TO 6.

6.SYMPTOM DIAGNOSIS

Check the symptom diagnosis table. Refer to HAC-96, "Diagnosis Chart By Symptom".

>> GO TO 8.

7.VERIFY REPAIR.

With CONSULT

Turn ignition switch ON.
Select “Self Diagnostic Result” mode of “HVAC” using CONSULT.
Check DTC.

Is any DTC detected? YES >> GO TO 4.

NO >> GO TO 8.

8.PERFORM FINAL OPERATION CHECK

Perform the operation check. Refer to HAC-48, "Work Procedure".

Does it operate normally? YES >> Inspection End.

NO >> GO TO 2.

OPERATION INSPECTION

Work Procedure

DESCRIPTION

The purpose of the operational check is to check that the individual system operates normally.

Conditions : Engine running at normal operating temperature

INSPECTION PROCEDURE

1.CHECK MEMORY FUNCTION

Start the engine.
Operate the temperature control switch (driver side) and raise the temperature setting to 32°C (90°F).
Press the OFF switch.
Turn the ignition switch OFF.
Turn the ignition switch ON.
Press the AUTO switch.
Check that the temperature setting, before turning the ignition switch OFF, is stored.

Is the inspection result normal? YES >> GO TO 2.

NO >> Check power and ground circuits for A/C auto amp. Refer to HAC-56, "Diagnosis Procedure".

2.CHECK BLOWER MOTOR SPEED

Operate the fan control dial. Check that the fan speed changes.
Check the operation for all fan speeds.

Is the inspection result normal? YES >> GO TO 3.

NO >> Check blower motor system. Refer to HAC-85, "Diagnosis Procedure".

3.CHECK DISCHARGE AIR (MODE SWITCH AND DEF SWITCH)

Press the MODE switch and the DEF switch.
Check that the air outlets change according to each indicated air outlet by placing a hand in front of the outlets. Refer to HAC-10, "System Description".

NOTE: Confirm that the A/C compressor clutch is engaged (sound or visual inspection) and intake door position is at FRE ( ) when the D/F ( ) or DEF () is selected. Is the inspection result normal? YES >> GO TO 4.

NO >> Check mode door system. Refer to HAC-80, "Diagnosis Procedure".

4.CHECK INTAKE AIR

Press the REC ( ) switch. Indicator is turned ON.
Press the FRE ( ) switch. Indicator is turned ON.
Listen for the intake door position change. (Slight change of blower sound can be heard.)

NOTE: Confirm that the A/C compressor clutch is engaged (sound or visual inspection) and the FRE ( ) switch is pressed when the D/F ( ) or DEF ( ) is selected. Is the inspection result normal? YES >> GO TO 5.

NO >> Check intake door system. Refer to HAC-77, "Diagnosis Procedure".

5.CHECK A/C SWITCH

Press the A/C switch.
The A/C switch indicator is turned ON.

Confirm that the A/C compressor clutch engages (sound or visual inspection).

Is the inspection result normal? YES >> GO TO 6.

NO >> Check magnet clutch system. Refer to HAC-91, "Diagnosis Procedure".

6.CHECK TEMPERATURE DECREASE

Operate the A/C compressor.
Operate the temperature control dial (driver side) and lower the temperature setting to 18°C (60°F).
Check that the cool air blows from the outlets.

Is the inspection result normal? YES >> GO TO 7.

NO >> Check for insufficient cooling. Refer to HAC-98, "Diagnosis Procedure".

7.CHECK TEMPERATURE INCREASE

Operate the temperature control dial (driver side) and raise the temperature setting to 32°C (90°F) after warming up the engine.
Check that the warm air blows from the outlets.

Is the inspection result normal? YES >> GO TO 8.

NO >> Check for insufficient heating. Refer to HAC-99, "Diagnosis Procedure".

8.CHECK DUAL MODE FUNCTION

Press the DUAL mode switch, and then check that “DUAL” is shown on the display.
Operate the temperature control dial (driver side). Check that the discharge air temperature (driver side) changes.
Operate the temperature control dial (passenger side). Check that the discharge air temperature (passenger side) changes.
Press the DUAL mode switch, and then check that the temperature setting (driver/passenger) is unified to the driver side temperature setting.

Is the inspection result normal? YES >> GO TO 9.

NO >> Refer to HAC-96, "Diagnosis Chart By Symptom" and perform the appropriate diagnosis.

9.CHECK AUTO MODE

Press the AUTO switch, and then check that “AUTO” is shown on the display.
Operate the temperature control dial (driver side). Check that the fan speed, outlet air or intake air changes. The discharge air temperature or fan speed varies depending on the ambient temperature, invehicle temperature, and temperature setting.

Is the inspection result normal? YES >> Inspection End.

NO >> Refer to HAC-96, "Diagnosis Chart By Symptom" and perform the appropriate diagnosis.

SYSTEM SETTING

Temperature Setting Trimmer

Description

If the temperature felt by the customer is different than the airflow temperature controlled by the temperature setting, the auto amplifier control temperature can be adjusted to compensate for the temperature setting.

How to set

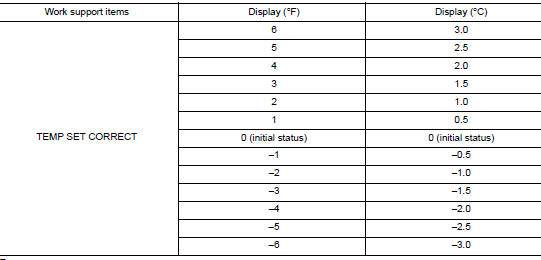

Using CONSULT, perform “TEMP SET CORRECT” in “WORK SUPPORT” of HVAC.

How to set

NOTE:

When the temperature setting is set to 25.0°C (77°F) and −3.0°C (−6°F), the temperature controlled by auto amp is 25.0°C (77°F) − 3.0°C (6°F) = 22.0°C (71°F) and the temperature becomes lower than the temperature setting.
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the difference between the temperature setting and control temperature may be cancelled.

Foot Position Setting Trimmer

DESCRIPTION

In FOOT mode, the air blowing to DEF can change ON/OFF.

HOW TO SET

With CONSULT

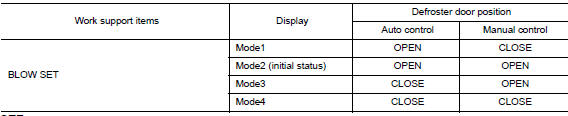

Perform the “BLOW SET” of HVAC work support item.

Foot Position Setting Trimmer

NOTE: When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V or less, the setting of the discharge air mix ratio in FOOT mode may be cancelled.

Inlet Port Memory Function (FRE)

Description

If the ignition switch is turned to the OFF position while the FRE ( ) switch is set to ON (fresh air intake), “Perform the memory” or “Do not perform the memory” of the FRE ( ) switch ON (fresh air intake) condition can be selected.
If “Perform the memory” was set, the FRE ( ) switch will be ON (fresh air intake) when turning the ignition switch to the ON position again.
If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

How to set

Using CONSULT, perform “FRE MEMORY SET” in “WORK SUPPORT” of HVAC.

How to set

NOTE: When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the FRE switch memory function may be cancelled.

Inlet Port Memory Function (REC)

Description

If the ignition switch is turned to the OFF position while the REC ( ) switch is set to ON (recirculation), “Perform the memory” or “Do not perform the memory” of the REC ( ) switch ON (recirculation) condition can be selected.
If “Perform the memory” was set, the REC ( ) switch will be ON (recirculation) when turning the ignition switch to the ON position again.
If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

How to set

Using CONSULT, perform “REC MEMORY SET” in “WORK SUPPORT” of HVAC.

How to set

NOTE: When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the REC switch memory function may be cancelled.

Target Evaporator Temp Upper Limit

DESCRIPTION

Set the target evaporator temperature upper limit.

HOW TO SET

With CONSULT

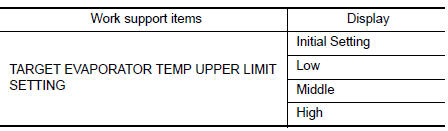

Perform the “TARGET EVAPORATOR TEMP UPPER LIMIT SETTING” of HVAC work support item.

Target Evaporator Temp Upper Limit

DOOR MOTOR STARTING POSITION RESET

Description

Reset signal is transmitted from A/C auto amp. to air mix door motor, intake door motor and mode door motor. Starting position reset can be performed.

NOTE: During reset, DEF switch indicator blinks.

When air mix door motor, intake door motor or mode door motor is removed and installed, always perform door motor starting position reset.

Work Procedure

1.PERFORM DOOR MOTOR STARTING POSITION RESET

With CONSULT

Turn ignition switch ON.
Select “Door Motor Starting Position Reset” in “ACTIVE TEST” mode of “HVAC” using CONSULT.
Touch “Start” and wait a few seconds.
Make sure the “COMPLETED” is displayed on CONSULT screen.

>> Inspection End.
