Nissan Rogue Service Manual: Rear stabilizer

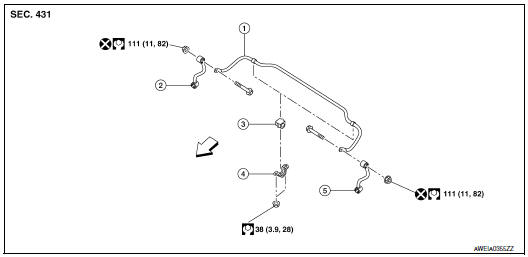

Exploded View

Exploded View

  1. Rear stabilizer bar
  2.  Connecting rod (RH)
  3.  Rear stabilizer bar bushing
  4.  Rear stabilizer bar clamp
  5.  Connecting rod (LH)

  Front

Removal and Installation

REMOVAL

  1.  Disconnect rear stabilizer links from rear stabilizer bar.
  2.  Remove nuts on rear stabilizer clamp.
  3.  Remove rear stabilizer bar from rear suspension member
  4.  Remove rear stabilizer bushings from rear stabilizer bar (if necessary).
  5.  Perform the inspection after removal. Refer to RSU-21, "Inspection".

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INSPECTION AFTER REMOVAL

Check rear stabilizer bar, rear stabilizer link, rear stabilizer bushing and rear stabilizer clamp for deformation, cracks or damage. Replace it if necessary.
