Nissan Rogue Service Manual: Service data and specifications (SDS)
Wheel Bearing
Drive Shaft

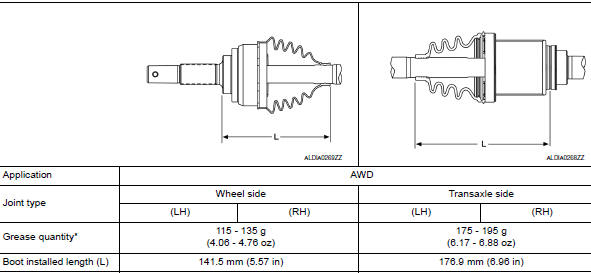

Drive Shaft Specifications
*Always check with the Parts Department for the latest parts information.

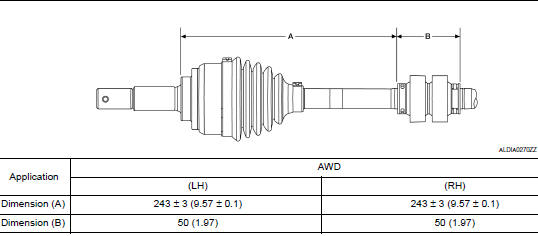

Dynamic Damper Specifications

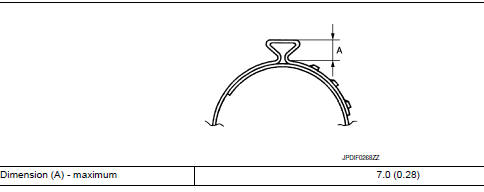

Boot Band Specification
Unit disassembly and assembly
FRONT DRIVE SHAFT
Exploded View (LH)
Shaft
Circular clip
Dust shield
Housing
Snap ring
Spider assembly
Stopper ring
Boot
Boot band
Joint sub-assembly
...
Rear Axle
...
Other materials:
Parking brake shoe
Exploded View
Back plate
Parking brake shoe
Brake strut
Return spring
Spring
Return spring to brake strut
Adjuster
Toggle lever
Anti-rattle pin
: Apply PBC (Poly Butyl
Cuprysil) grease or silicone-based grease
Removal and Installation
REMOVAL
WARNING ...
Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
KV40107300
( — )
Boot band crimping tool
Installing boot band
KV40107500
( — )
Drive shaft attach ...
