Description

Replace the O-ring if oil leakage or exudes from the plug.

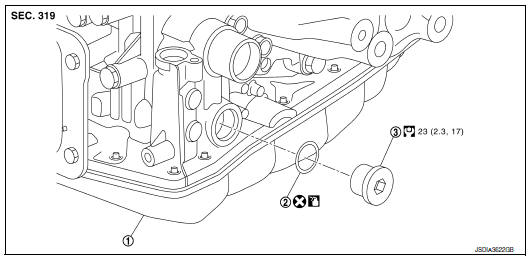

Exploded View

Exploded View

Transaxle assembly
O-ring
Plug

: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
: Apply CVT fluid

Removal and Installation

REMOVAL

Partially remove front fender protector (LH). Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
Remove the plug and O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.
Apply CVT fluid to O-ring.

Inspection and Adjustment

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage. Refer to TM-190, "Inspection".

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to TM-192, "Adjustment".
