Nissan Rogue Service Manual: Inside mirror

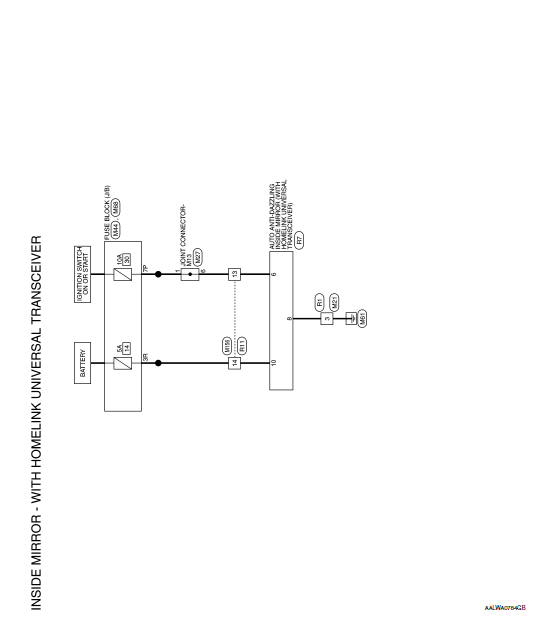

Wiring Diagram - With Homelink Universal Transceiver

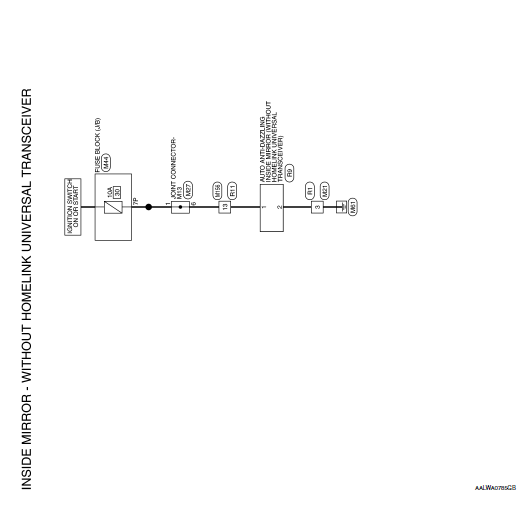

Wiring Diagram - Without Homelink Universal Transceiver

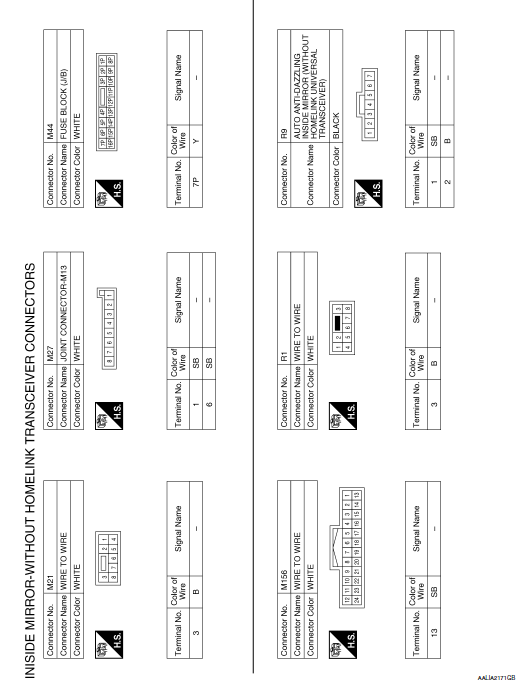

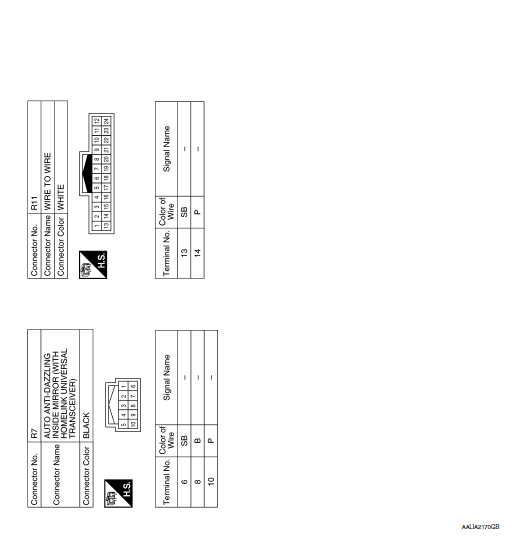

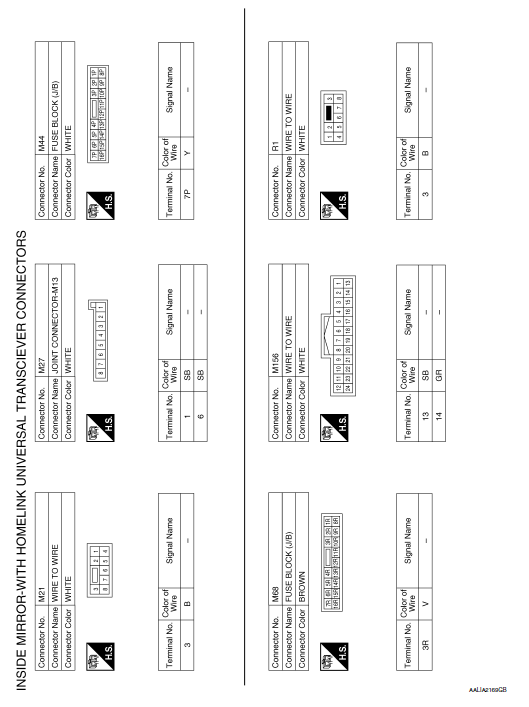

Wiring diagram
...
Door mirror
Wiring Diagram
...
