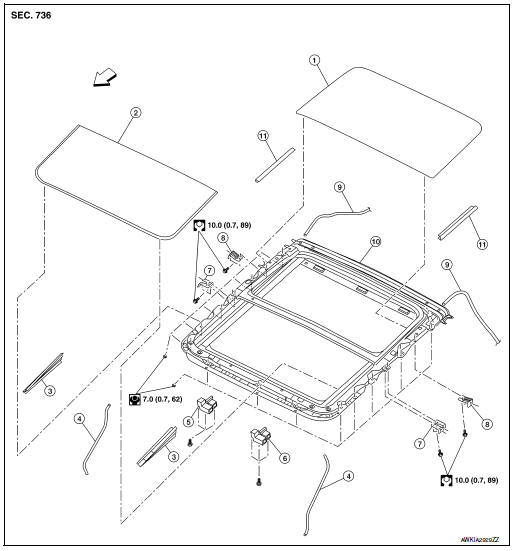

Exploded View

Exploded View

Panoramic roof glass
Glass lid
Side trim covers (LH/RH)
Front drain hose (LH/RH)
Moonroof motor assembly
Sunshade motor assembly
Moonroof front bracket (LH/RH)
Moonroof rear bracket (LH/RH)
Rear drain hose (LH/RH)
Moonroof unit assembly
Rear trim covers (LH/RH)

Front

Removal and Installation

CAUTION: Handle glass lid with care to prevent damage.

REMOVAL

Open sunshade (1) and close glass lid.
Front

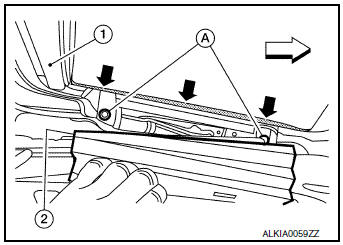

Slide the side trim covers (2) (LH/RH) inward, then release from the glass lid inside edge and set aside.
Remove the glass lid bolts (A) on the (LH/RH) sides.

Removal

Remove glass lid from moonroof unit assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

First tighten left front bolt, then right rear bolt to prevent uneven alignment while tightening remaining bolt.
After installing glass lid, check gap/height adjustments and operation. Refer to RF-55, "Inspection".

Panoramic roof glass

Exploded View Panoramic roof glass Glass lid Side trim covers (LH/RH) Front drain hose (LH/RH) Moonroof motor assembly Sunshade motor assembly Moonroof front bracke ...
