Nissan Rogue Service Manual: Front seat

Exploded View

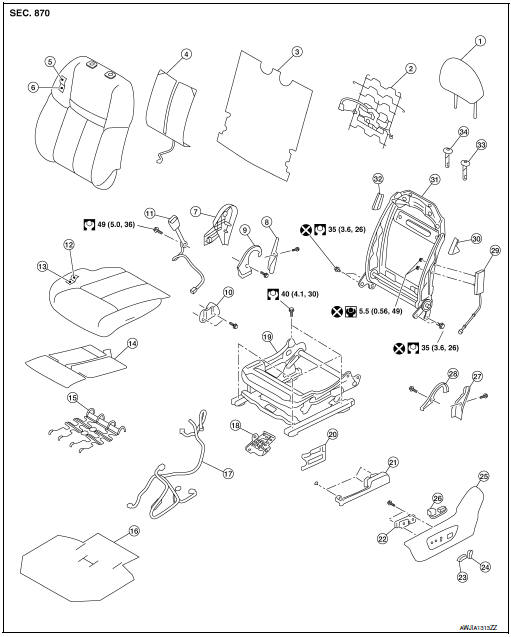

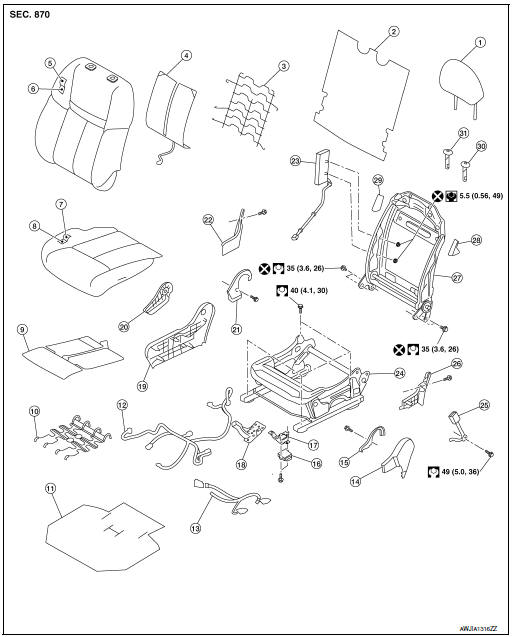

DRIVER POWER SEAT

1. Headrest
2. Seatback support
3. Seatback board
4.  Seatback heater (if equipped)
5. Seatback trim
6.  Seatback pad
7. Seat cushion outer finisher (RH)
8.  Seat cushion rear finisher (RH)
9.  Seat cushion inner finisher (RH)
10.  Seat slide finisher (RH)
11.  Seat belt buckle
12.  Seat cushion trim
13.  Seat cushion pad
14.  Seat cushion heater (if equipped)
15.  Seat cushion support
16.  Seat cushion silencer
17.  Seat harness
18.  Seat harness bracket
19.  Seat cushion frame
20.  Seat slide finisher bracket (LH)
21.  Seat slide finisher (LH)
22.  Power seat switch
23. Seat slide knob
24. Side recline knob
25.  Seat cushion outer finisher (LH)
26.  Lumbar support switch
27.  Seat cushion rear finisher (LH)
28.  Seat cushion inner finisher (LH)
29.  Side air bag module (not serviceable)
30.  Seatback bracket (LH)
31.  Seatback frame
32.  Seatback bracket (RH)
33.  Headrest holder (locked)
34.  Headrest holder (free)

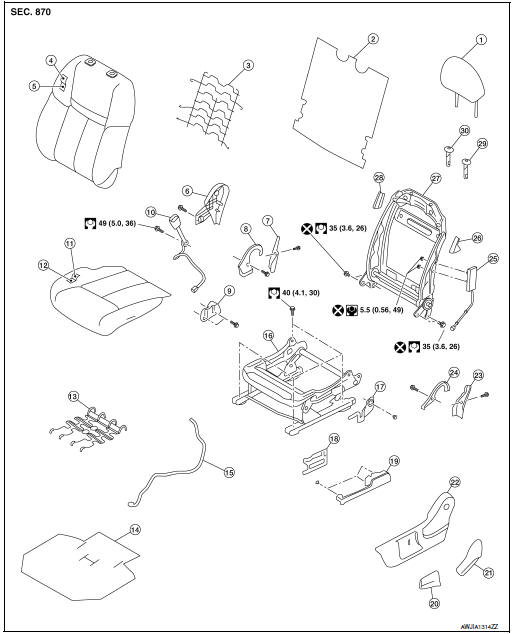

DRIVER MANUAL SEAT

1. Headrest
2. Seatback board
3. Seatback support
4.  Seatback trim
5. Seatback pad
6. Seat cushion outer finisher
7. Seat cushion rear finisher (RH)
8. Seat cushion inner finisher (RH)
9. Seat slide finisher (RH)
10.  Seat belt buckle
11. Seat cushion trim
12.  Seat cushion pad
13.  Seat cushion support
14.  Seat cushion silencer
15.  Seat harness
16.  Seat cushion frame
17.  Recline switch
18.  Seat slide finisher bracket (LH)
19.  Seat slide finisher (LH)
20.  Lift lever
21.  Recline lever
22.  Seat cushion outer finisher (LH)
23. Seat cushion rear finisher (LH)
24.  Seat cushion inner finisher (LH)
25. Side air bag module (not serviceable)
26.  Seatback bracket (LH)
27.  Seatback frame
28.  Seatback bracket (RH)
29. Headrest holder (locked) Headrest holder (free)

PASSENGER POWER SEAT

1. Headrest
2. Seatback board
3. Seatback support
4.  Seatback heater unit
5. Seat cushion trim
6. Seat cushion pad
7. Seat cushion trim
8. Seat cushion pad
9. Seat cushion heater unit
10.  Seat cushion support
11.  Seat cushion silencer
12.  Seat harness
13.  Occupant classification system harness
14.  Seat cushion outer finisher (LH)
15.  Seat cushion inner finisher (LH)
16. Occupant classification system control unit
17.  Occupant classification system bracket
18.  Wiring harness bracket
19.  Power seat switch
20.  Seat cushion outer finisher (RH)
21.  Seat slide knob
22.  Seat recline knob
23.  Seat cushion inner finisher (RH)
24.  Seat cushion rear finisher (RH)
25.  Side air bag module (not serviceable)
26.  Seat cushion frame
27.  Seat belt buckle
28.  Seat cushion rear finisher (LH)
29. Seatback frame
30.  Seatback bracket (LH)
31.  Seatback bracket (RH)
32.  Headrest holder (locked)
33.  Headrest holder (free)

PASSENGER MANUAL SEAT

1. Headrest
2. Seatback board
3. Seatback support
4.  Seatback heater unit (if equipped)
5. Seatback trim
6. Seatback pad
7. Seat cushion trim
8. Seat cushion pad
9. Seat cushion heater unit (if equipped)
10.  Seat cushion support
11.  Seat cushion silencer
12.  Seat harness
13.  Occupant classification system harness
14.  Seat cushion outer finisher (LH)
15.  Seat cushion inner finisher (LH)
16.  Occupant classification system control unit
17.  Occupant classification system control unit bracket
18.  Wiring harness bracket
19.  Seat cushion outer finisher
20. Recline lever
21. Seat cushion inner finisher (RH)
22.  Seat cushion rear finisher (RH)
23.  Side air bag module (not serviceable)
24.  Seat cushion frame
25.  Seat belt buckle
26.  Seat cushion rear finisher (LH)
27.  Seatback frame
28.  Seatback bracket (LH)
29.  Seatback bracket (RH)
30.  Headrest holder (free)
31.  Headrest holder (locking)

Seatback

DISASSEMBLY

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

•  Before servicing, turn the ignition switch OFF, disconnect both battery terminals then wait at least three minutes.
•  Always work from the side or back of the seatback, do not work in front of seat.
•  Do not use air tools or electric tools for servicing the seat assembly.
•  Do not insert any objects into the side air bag module.
•  Do not attempt to disassemble the side air bag module.
•  Do not expose the side air bag module to temperatures exceeding 93°C (199°F).
•  Do not expose the side air bag module to any oil, grease, detergent or water.
•  During disassembly, do not damage the seatback board, connectors, retainers, clips, module harness or the side air bag module.

NOTE:

•  If the vehicle has been involved in a collision and the side air bag module has deployed, the seat trim must be replaced.
•  Front seat (LH) shown, front seat (RH) similar.

1.  Remove driver side front seat or front seat passenger side. Refer to SE-32, "DRIVER SIDE : Removal and Installation" (DRIVER SIDE), SE-35, "PASSENGER SIDE : Removal and Installation" (PASSENGER SIDE).

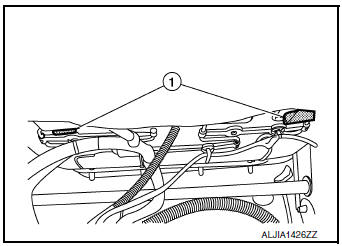

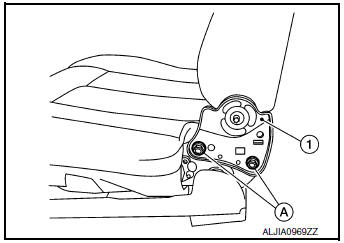

2.  Release J-hooks (1) fastener (LH/RH).

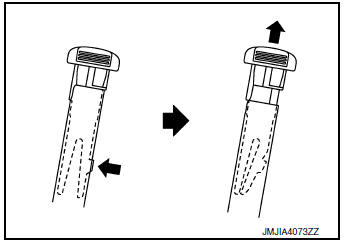

3. Press the headrest holder lock button, then lift headrest up and remove.
4. Release headrest holder locks as shown and remove headrest holders.

   CAUTION: Before removing/installing the headrest holder, check its orientation (front/rear and right/left).

5. Release side air bag module harness clips from seat frame.

   NOTE: Take note of harness routing and attachment location for correct installation.

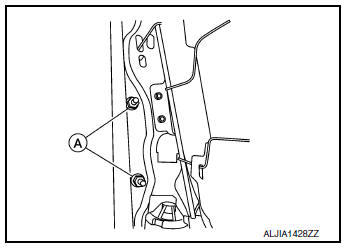

6.  Remove side air bag module harness nuts (A).

   CAUTION: Do not reuse side air bag module nuts.

7. Remove seat cushion outer finisher (LH).

1.  For manual seat:

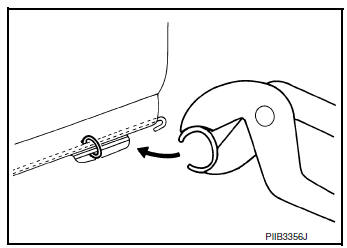

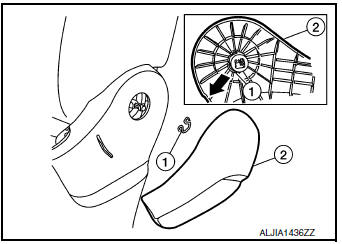

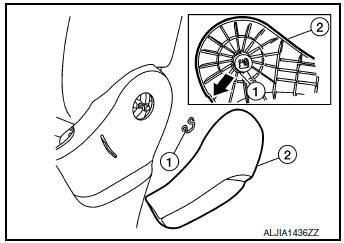

   i. Remove snap ring (1) as shown ( ) using a suitable tool, then remove the recline lever (2).

ii. Release pawl and remove lift lever.
iii. Release metal clips (A) from seat cushion frame as shown ( ).

: Metal clip
iv. Release remaining pawls then remove seat cushion outer finisher (LH) (1).

: Pawl

2. For power seat:

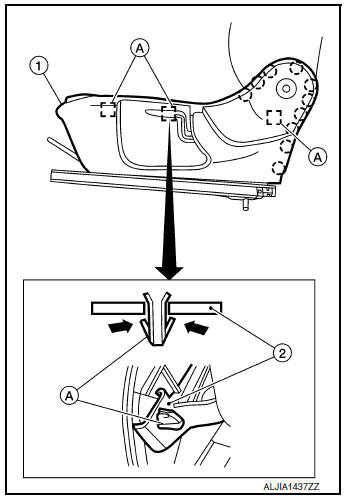

i. Remove the seat cushion outer finisher (LH) (1).

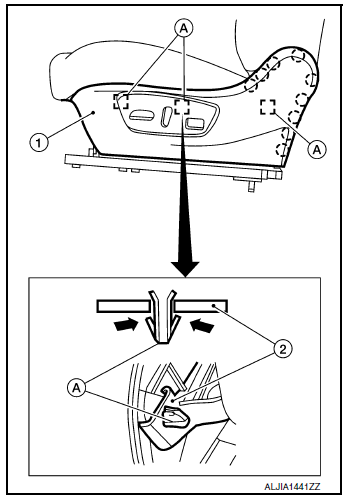

ii. Release metal clips (A) from seat frame (2), as shown.

: Metal clip
iii. Release pawls and remove.

: Pawl

Disconnect harness connectors from the power seat switch and lumbar support switch.

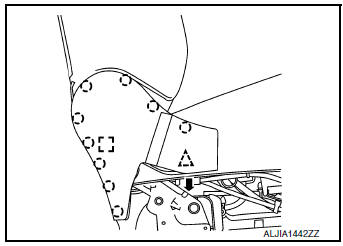

8. Release pawls and clips, and remove seat cushion outer finisher (RH) in the direction shown ( ).

: Pawl
: Metal clip
:Clip

9. Release clips and remove side air bag module harness from seat frame.

   NOTE: Take note of harness routing and attachment location for correct installation.

10.  Disconnect the harness connector from lumbar support motor (if equipped) and release harness from seatback assembly.

    NOTE: Take note of harness routing and attachment location for correct installation.

11.  Disconnect the harness connector for the front seat heater (if equipped).

    NOTE: Take note of harness routing and attachment location for correct installation.

12.  Remove seatback trim and pad.
13.  Release fastener and remove hog rings, then separate seatback trim from seatback pad.

NOTE: Remove all pieces of hog rings and discard them.

: Hog ring

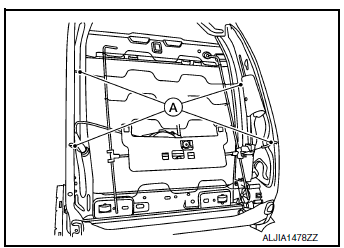

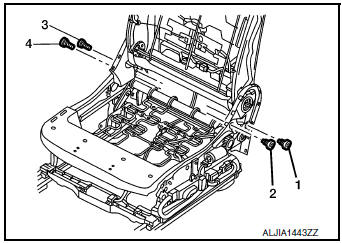

14. Remove screws (A) on both sides of the seatback frame (1).

    CAUTION: Do not reuse seatback frame screws. Replace with new ones.

ASSEMBLY

• First tighten screws by hand in the order shown.
•  Tighten the seatback assembly screws to specification. Refer to SE-50, "Exploded View".

• Install new hog rings on the seatback trim in original positions.
•  Use only one hog ring in each designated location.
•  Make sure hog rings are correctly fastened around both the seat back trim and seatback pad wires.
•  Use NISSAN standard hog rings and tools to assemble.
•  Make sure hook fastener is pressed into place after seatback trim is assembled.
•  Smooth out all wrinkles during assembly.

CAUTION:

•  Do not reuse seatback frame bolts, replace with new ones.
•  Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
•  After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRC-16, "Description".

Seat Cushion

DISASSEMBLY

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seat cushion repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

•  Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least three minutes.
•  Always work from the side or back of the seatback assembly, do not work in front of seat.
•  Do not use air tools or electric tools for servicing the seat assembly.

NOTE: Front seat (LH) shown, front seat (RH) similar.

1.  Remove the front seat driver side or front seat passenger side. Refer to SE-32, "DRIVER SIDE : Removal and Installation" (DRIVER SIDE), SE-35, "PASSENGER SIDE : Removal and Installation" (PASSENGER SIDE).
2. Remove seat cushion outer finisher (LH).
3.  For manual seat:

i. Remove snap ring (1) as shown () using a suitable tool, then remove the recline lever (2).

ii. Release pawl and remove lift lever.

iii. Release metal clips (A) from seat cushion frame as shown ( ).

: Metal clip

iv. Release remaining pawls then remove seat cushion outer finisher (LH) (1).

: Pawl

2. For power seat:

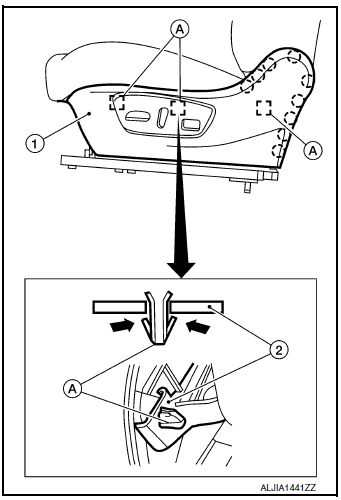

i. Remove the seat cushion outer finisher (LH) (1).

ii. Release metal clips (A) from seat frame (2), as shown ( ).

: Metal clip

iii. Release pawls and remove.

: Pawl

iv. Disconnect harness connectors from the power seat switch and lumbar support switch.

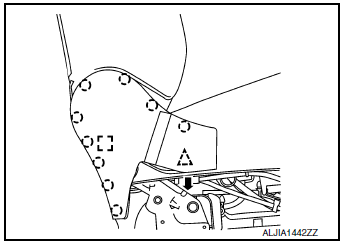

3.  Release pawls and clips, and remove seat cushion outer finisher (RH) in the direction shown ( ).

: Pawl
: Metal clip
:Clip

4. Release two seatback J-clip retainers from the seat frame.
5.  Partially release seatback fasteners (LH/RH).

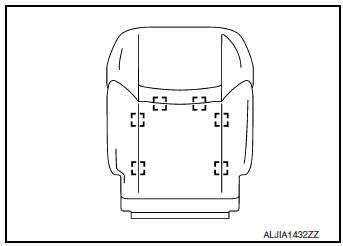

6.  Release ten seat cushion J-clips holding the seat cushion trim to the seat frame.
7. Remove seat cushion trim and seat cushion pad as an assembly from the seat frame.
8.  Remove hog rings and separate seat cushion trim and seat cushion pad.

NOTE: Remove all pieces of hog rings and discard them.

ASSEMBLY

Assembly is in the reverse order of disassembly.

•  Install new hog rings on the seat cushion trim in original positions.
•  Use only one hog ring in each designated location.
•  Make sure hog rings are correctly fastened around both the seat cushion trim and seat cushion pad wires.
•  Use NISSAN standard hog rings and tools to assemble.
•  Make sure hook fastener is pressed into place after seat cushion trim is assembled.
•  Smooth out all wrinkles during assembly.

CAUTION:

•  Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
•  After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".

Lumbar Support

DISASSEMBLY

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

•  Before servicing, turn the ignition switch OFF, disconnect both battery terminals, then wait at least three minutes.
•  Handle the side air bag module carefully. During disassembly, always hold the side air bag module, do not let it hang by the wire harness.
•  Always work from the side or back of the seatback, do not work in front of seat.
•  Do not use air tools or electric tools for servicing the seat.
•  Replace the side air bag module if it has been dropped or sustained an impact.
•  Do not insert any objects into the side air bag module.
• Do not attempt to disassemble the side air bag module.
• Do not expose the side air bag module to temperatures exceeding 93°C (199°F).
•  Do not expose the side air bag module to any oil, grease, detergent or water.
•  During disassembly, do not damage the seatback board, chutes, connectors, retainers, clips, module harness or the side air bag module.

NOTE: If the vehicle has been involved in a collision and the side air bag module has deployed, the seatback pad and seatback trim must be replaced.

1.  Remove the seatback. Refer to SE-55, "Seatback".
2.  Release hooks (A) from seatback frame and remove lumbar support.

ASSEMBLY

Assembly is in the reverse order of disassembly.

CAUTION:

•  Do not reuse the side air bag module nuts.
•  Inspect seatback pad, seatback trim and seatback trim chutes. Replace if damaged.
•  Smooth out all wrinkles during assembly.
•  Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
•  After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
•  If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRC-18, "Trouble Diagnosis with CONSULT".
•  When installing the side air bag module, make sure there are no wrinkles and the chute is not folded, twisted or pinched.
