Nissan Rogue Service Manual: Front and rear washer motor

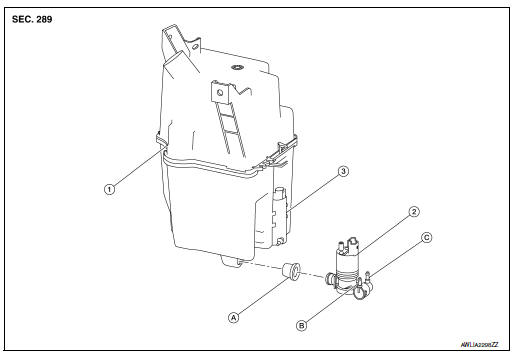

Exploded View

Exploded View

  1. Washer tank
  2. Front and rear washer motor
  3. Rear view camera washer motor
  4. Seal
  5. Rear washer outlet
  6. Front washer out

Removal and Installation

REMOVAL

  1.  Drain washer fluid.
  2.  Remove front fender protector (RH). Refer to EXT-28, "FENDER PROTECTOR : Exploded View".
  3.  Disconnect harness connector from front and rear washer motor.
  4.  Disconnect front and rear washer outlet tubes.
  5.  Remove front and rear washer motor from washer tank.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Washer tank
Exploded View Cap Washer tank  Washer tank inlet  Clip Removal and Installation REMOVAL  Drain washer fluid.  Using a suitable tool release washer tank in ...

Washer fluid level switch
Removal and Installation The washer fluid level switch is serviced as a part of the washer tank. Refer to WW-56, "Removal and Installation". ...
