Nissan Rogue Service Manual: ECU diagnosis information

Nissan Rogue Service Manual / Transmission & driveline / Transaxle & Transmission / ECU diagnosis information

TCM

Reference Value

CONSULT DATA MONITOR STANDARD VALUE

In CONSULT, electric shift timing or lock-up timing, i.e. operation timing of each solenoid valve, is displayed.
Therefore, if there is an obvious difference between the shift timing estimated from a shift shock (or engine speed variations) and that shown on the CONSULT, the mechanism parts (including the hydraulic circuit) excluding the solenoids and sensors may be malfunctioning. In this case, check the mechanical parts following the appropriate diagnosis procedure.
Shift point (gear position) displayed on CONSULT slightly differs from shift pattern described in Service Manual.

This is due to the following reasons.

Actual shift pattern may vary slightly within specified tolerances.
While shift pattern described in Service Manual indicates start of each shift, CONSULT shows gear position at end of shift.
The solenoid display (ON/OFF) on CONSULT is changed at the start of gear shifting. In contrast, the gear position display is changed at the time when gear shifting calculated in the control unit is completed.

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Monitor item	Condition	Value/Status (Approx.)
VSP SENSOR	While driving	Almost same as the speedometer display.
ESTM VSP SIG	While driving	Almost same as the speedometer display
INPUT SPEED SENSOR	In driving (lock-up ON)	Approximately matches the engine speed.
PRI SPEED SEN	In driving (lock-up ON)	Approximately matches the engine speed.
SEC REV SENSOR	While driving	VSP SENSOR × 40
ENG SPEED SIG	Engine running	Almost same reading as tachometer
SEC PRESSURE SEN	After engine warm up Selector lever: “N” position At idle	1.23 – 1.25 V
PRI PRESSURE SEN	After engine warm up Selector lever: “N” position At idle	0.75 – 0.82 V
ATF TEMP SEN	CVT fluid: Approx. 20°C (68°F)	2.01 – 2.05 V
	CVT fluid: Approx. 50°C (122°F)	1.45 – 1.50 V
	CVT fluid: Approx. 80°C (176°F)	0.90 – 0.94 V
G SENSOR	Vehicle is level	0 V
VIGN SEN	Ignition switch: ON	10 – 16 V
PVIGN VOLT	Ignition switch: ON	10 – 16 V
VEHICLE SPEED	While driving	Almost same as the speedometer display.
INPUT REV	In driving (lock-up ON)	Almost same as the engine speed.
PRI SPEED	In driving (lock-up ON)	Approximately matches the engine speed.
SEC SPEED	While driving	VSP SENSOR × 40
ENG SPEED	Engine running	Almost same reading as tachometer
SLIP REV	While driving	Engine speed − Input speed
PULLEY GEAR RATIO	In driving (forward)	2.70 − 0.38
PULLEY GEAR RATIO	In driving (reverse)	2.70
G SPEED	Vehicle stopped	0.00 G
	During acceleration	The value changes to the positive side along with acceleration.
	During deceleration	The value changes to the positive side along with deceleration.
ACCEL POSI SEN 1	Accelerator pedal released	0.00 deg
ACCEL POSI SEN 1	Accelerator pedal fully depressed	80.00 deg
VENG TRQ	While driving	The value changes along with acceleration/ deceleration.
PRI TRQ	While driving	The value changes along with acceleration/ deceleration.
TRQ RTO	While driving	The value changes along with acceleration/ deceleration.
SEC PRESSURE	After engine warm up Selector lever: “N” position At idle	1.1 MPa
PRI PRESSURE	After engine warm up Selector lever: “N” position At idle	0.4 – 0.45 MPa
FLUID TEMP	Ignition switch ON.	Displays the CVT fluid temperature.
DSR REV	While driving	It varies along with the driving condition.
TGT PLLY GR RATIO	In driving (forward)	2.70 − 0.38
TGT PLLY GR RATIO	In driving (reverse)	2.70
LU PRS	Engine started Vehicle is stopped.	−0.50 MPa
LU PRS	Selector lever: “D” position Accelerator pedal position: 1/8 or less Vehicle speed: 20 km/h (12 MPH) or more	0.65 MPa
LINE PRS	After engine warm up Selector lever: “N” position At idle	1.1 MPa
TRGT PRI PRESSURE	After engine warm up Selector lever: “N” position At idle	0.4 – 0.45 MPa
TARGET SELECT PRESSURE	After engine warm up Selector lever: “N” position At idle	0 MPa
TARGET SELECT PRESSURE	Selector lever: “D” position At idle	0.3 – 0.5 MPa
TARGET SEC PRESSURE	After engine warm up Selector lever: “N” position At idle	1.1 MPa
ISOLT1*	—	—
ISOLT2 *	—	—
PRI SOLENOID*	—	—
SEC SOLENOID CURRENT*	—	—
SELECT SOLENOID CURRENT*	—	—
SOLMON1*	—	—
SOLMON2*	—	—
PRI SOL MON*	—	—
SEC SOL MON CURRENT*	—	—
SELECT SOL MON CURRENT*	—	—
D POSITION SW	Selector lever: “D” position	On
D POSITION SW	Other than the above	Off
N POSITION SW	Selector lever: “N” position	On
N POSITION SW	Other than the above	Off
R POSITION SW	Selector lever: “R” position	On
R POSITION SW	Other than the above	Off
P POSITION SW	Selector lever: “P” position	On
P POSITION SW	Other than the above	Off
L POSITION SW	Selector lever: “L” position	On
L POSITION SW	Other than the above	Off
DS RANGE SW	Always	Off
BRAKESW	Brake pedal is depressed	On
BRAKESW	Brake pedal is released	Off
IDLE SW	Accelerator pedal is released	On
IDLE SW	Accelerator pedal is fully depressed	Off
SPORT MODE SW	Press the overdrive control switch	On
SPORT MODE SW	Release the overdrive control switch	Off
ECO MODE SW	Always	Off
STRDWNSW	Always	Off
STRUPSW	Always	Off
DOWNLVR	Always	Off
UPLVR	Always	Off
NONMMODE	Always	Off
MMODE	Always	Off
TOW MODE SW	Always	Off
SHIFT IND SIGNAL	When the selector lever is positioned in between each position.	OFF
	Selector lever: “P” position	P
	Selector lever: “R” position	R
	Selector lever: “N” position	N
	Selector lever: “D” position	D
	Selector lever: “L” position	L
CVT LAMP	Approx. 2 seconds after ignition switch ON	On
CVT LAMP	Other than the above	Off
SPORT MODE IND	In O/D OFF	On
SPORT MODE IND	Other than the above	Off
MANU MODE SIGNAL	Always	Off
DS RANGE SIGNAL	Always	Off
ECO MODE SIGNAL	Always	Off
VDC ON	When VDC malfunction signal is received	On
VDC ON	Other than the above	Off
TCS ON	When TCS malfunction signal is received	On
TCS ON	Other than the above	Off
ABS FAIL SIGNAL	When ABS malfunction signal is received	On
ABS FAIL SIGNAL	Other than the above	Off
ABS ON	ABS is activated	On
ABS ON	Other than the above	Off
RANGE	Selector lever: “P” and “N” positions	N/P
	Selector lever: “R position	R
	Selector lever: “D” position (Normal)	D
	Selector lever: “D” position (O/D OFF)	S
	Selector lever: “L” position	L
M GEAR POS	Always	1
G SEN SLOPE	Always	0%
G SEN CALIBRATION	When G sensor calibration is completed	DONE
G SEN CALIBRATION	When G sensor calibration is not completed	YET
N IDLE STATUS	Always	Off
ENGBRKLVL	When the engine brake level of “ENGINE BRAKE ADJ”. in “Work Support” is ON	On
ENGBRKLVL	When the engine brake level of “ENGINE BRAKE ADJ”. in “Work Support” is OFF	Off
DRIVE MODE STATS	While driving in SPORT mode	SPORT
DRIVE MODE STATS	Other than the above	NORMAL
SNOW MODE	Always	Off
ECO MODE	Always	Off
NORMAL MODE	Always	Off
SPORT MODE	Always	Off
AIR BLDING STATE	Always	INCOMP
ELECTRIC OP DUTY	Always	0%
E-OP DUTY MON	Always	0%
ELECTRIC OP RELAY	Always	Off
E-OP RELAY MON	Always	Off
CVT-B*	—	—
CVT-A*	—	—

*: These monitor items do not use.

TERMINAL LAYOUT

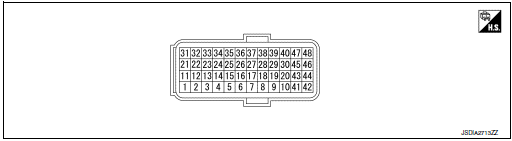

Terminal layout

INPUT/OUTPUT SIGNAL STANDARD

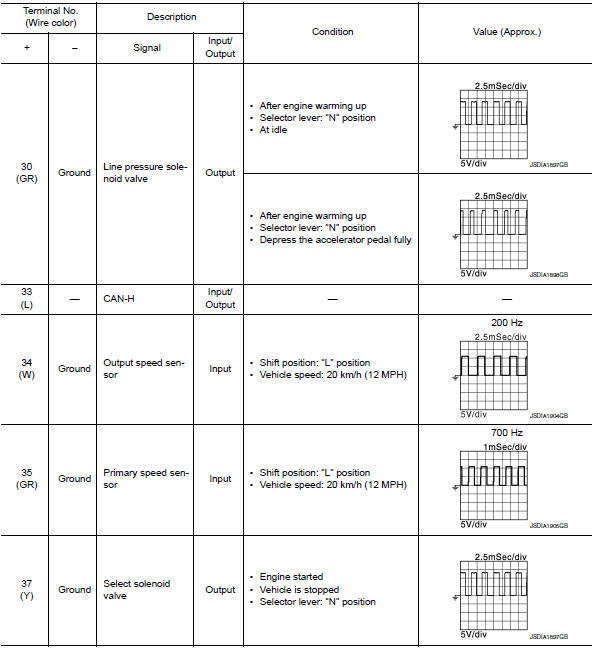

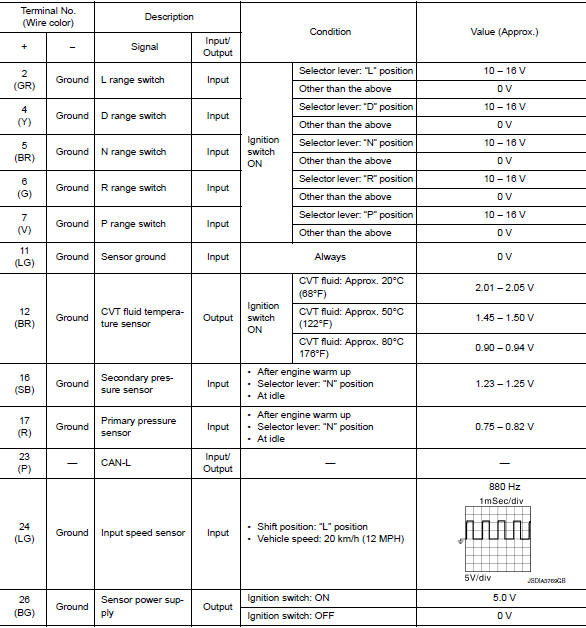

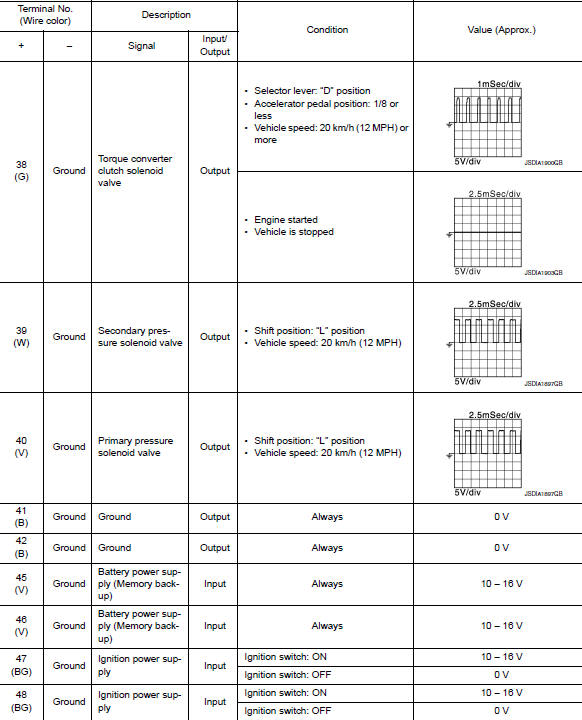

Input/output signal standard

Fail-safe

Tcm has a fail-safe mode. The mode functions so that operation can be continued even if the signal circuit of the main electronically controlled input/output parts is damaged.

If the vehicle shows following behaviors including “poor acceleration”, a malfunction of the applicable system is detected by tcm and the vehicle may be in a fail-safe mode. At this time, check the dtc code and perform inspection and repair according to the malfunction diagnosis procedures.

Fail-safe function

DTC	Vehicle behavior	Conditions of vehicle
P062F	Not changed from normal driving	—
P0705	Shift position indicator on combination meter is not displayed Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0706	Shift position indicator on combination meter is not displayed Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0711	Start is slow Acceleration is slow	Engine coolant temperature when engine start: Temp. ≥ 10°C (50°F)
	Selector shock is large Start is slow Acceleration is slow	Engine coolant temperature when engine start: −35°C (−31°F) ≤ Temp. < 10°C (50°F)
	Selector shock is large Start is slow Acceleration is slow	Engine coolant temperature when engine star: Temp. < −35°C (−31°F)
P0712	Start is slow Acceleration is slow	Engine coolant temperature when engine start: Temp. ≥ 10°C (50°F)
	Selector shock is large Start is slow Acceleration is slow	Engine coolant temperature when engine start: −35°C (−31°F) ≤ Temp. < 10°C (50°F)
	Selector shock is large Start is slow Acceleration is slow	Engine coolant temperature when engine star: Temp. < −35°C (−31°F)
P0713	Start is slow Acceleration is slow	Engine coolant temperature when engine start: Temp. ≥ 10°C (50°F)
	Selector shock is large Start is slow Acceleration is slow	Engine coolant temperature when engine start: −35°C (−31°F) ≤ Temp. < 10°C (50°F)
	Selector shock is large Start is slow Acceleration is slow	Engine coolant temperature when engine star: Temp. < −35°C (−31°F)
P0715	Start is slow Acceleration is slow Lock-up is not performed	—
P0717	Start is slow Acceleration is slow Lock-up is not performed	—
P0740	Start is slow Acceleration is slow Lock-up is not performed	—
P0743	Start is slow Acceleration is slow Lock-up is not performed	—
P0744	Start is slow Acceleration is slow Lock-up is not performed	—
P0746	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0776	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed Vehicle speed is not increased	When a malfunction occurs on the low oil pressure side
P0776	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	When a malfunction occurs on the high oil pressure side
P0778	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0779	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0841	Not changed from normal driving	—
P0847	Not changed from normal driving	—
P0848	Not changed from normal driving	—
P084C	Not changed from normal driving	—
P084D	Not changed from normal driving	—
P0863	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0890	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed Vehicle speed is not increased	—
P0962	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0963	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0965	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	When a malfunction occurs on the low oil pressure side
P0965	Selector shock is large Lock-up is not performed	When a malfunction occurs on the high oil pressure side
P0966	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P0967	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
P2765	Start is slow Acceleration is slow Lock-up is not performed	—
P2813	Selector shock is large Start is slow Acceleration is slow Vehicle speed is not increased	When a malfunction occurs on the low oil pressure side
P2813	Selector shock is large	When a malfunction occurs on the high oil pressure side
P2814	Selector shock is large	—
P2815	Selector shock is large	—
U0073	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
U0100	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
U0102	Not changed from normal driving	—
U0140	Not changed from normal driving	—
U0141	Not changed from normal driving	—
U0155	Not changed from normal driving	—
U0300	Selector shock is large Start is slow Acceleration is slow Lock-up is not performed	—
U1000	Not changed from normal driving	—
U110F	Not changed from normal driving	—
U1111	Not changed from normal driving	—
U1117	Not changed from normal driving	—

Protection Control

The TCM becomes the protection control status temporarily to protect the safety when the safety of TCM and transmission is lost. It automatically returns to the normal status if the safety is secured.

The TCM has the following protection control.

CONTROL FOR WHEEL SPIN

Control

When a wheel spin is detected, the engine output and gear ratio are limited and the line pressure is increased.

Limits engine output when a wheel spin occurs in any of right and left drive wheels.

Vehicle behavior in control

If the accelerator is kept depressing during wheel spin, the engine revolution and vehicle speed are limited to a certain degree.

Normal return condition

Wheel spin convergence returns the control to the normal control.

TORQUE IS REDUCED WHEN DRIVING WITH THE REVERSE GEAR

Control	Engine output is controlled according to a vehicle speed while reversing the vehicle.
Vehicle behavior in control	Power performance may be lowered while reversing the vehicle.
Normal return condition	Torque returns to normal by positioning the selector lever in a range other than “R” position.

CONTROL WHEN FLUID TEMPERATURE IS HIGH

Control	When the CVT fluid temperature is high, the gear shift permission maximum revolution and the maximum torque are reduced than usual to prevent increase of the oil temperature.
Vehicle behavior in control	Power performance may be lowered, compared to normal control.
Normal return condition	The control returns to the normal control when CVT fluid temperature is lowered.

REVERSE PROHIBIT CONTROL

Control	The reverse brake is controlled to avoid becoming engaged when the selector lever is set in “R” position while driving in forward direction at more than the specified speed.
Vehicle behavior in control	If the selector lever is put at “R” position when driving with the forward gear, the gear becomes neutral, not reverse.
Normal return condition	The control returns to normal control when the vehicle is driven at low speeds. (The reverse brake becomes engaged.)

DTC Inspection Priority Chart

If multiple malfunction codes are detected at the same time, check each code according to the DTC check priority list below.

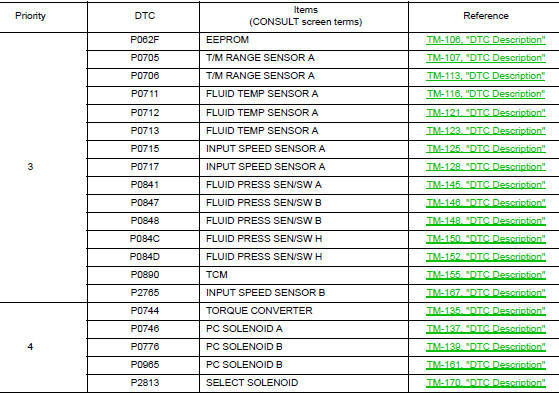

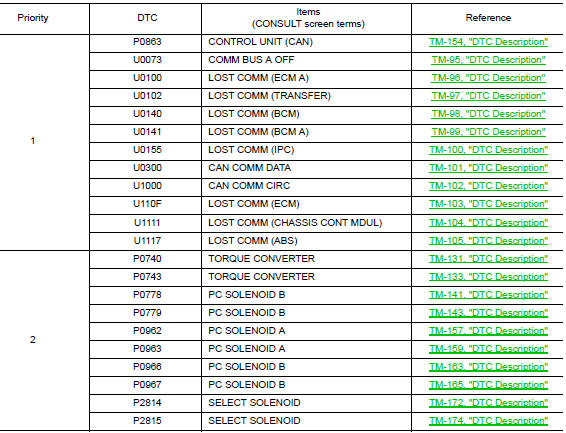

DTC Inspection Priority Chart

DTC Index

NOTE:

If multiple malfunction codes are detected at the same time, check each code according to the “DTC check priority list”. Refer to TM-62, "DTC Inspection Priority Chart".
The ignition counter is displayed in “FFD”. Refer to TM-47, "CONSULT Function".

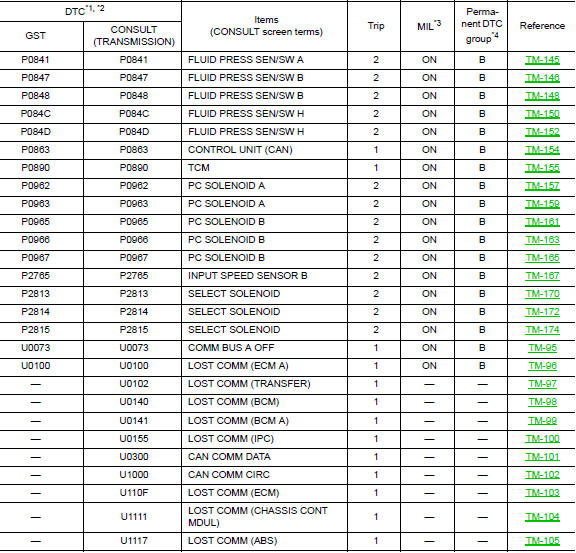

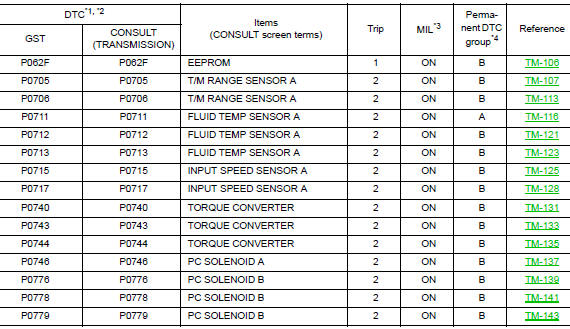

DTC Index

*1: These numbers are specified by SAE J2012/ISO 15031-6.
*2: The DTC number of the 1st trip is the same as the DTC number.
*3: Refer to TM-45, "DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)".
*4: Refer to TM-94, "Description".

Diagnosis system (TCM)

DIAGNOSIS DESCRIPTION DIAGNOSIS DESCRIPTION : 1 Trip Detection Diagnosis and 2 Trip Detection Diagnosis NOTE: “Start the engine and turn OFF the ignition switch after warm-up.” This is defi ...

Wiring diagram

...

Other materials:

Rear shock absorber
Exploded View Rear suspension member Upper seat Coil spring Lower seat Rubber washer (LH/RH) Rear suspension arm Rear shock absorber Front Removal and Installation REMOVAL Support the rear suspension arm using a suitable jack. CAUTION: Do not damage the rea ...

Parking brake shoe
Exploded View Back plate Parking brake shoe Brake strut Return spring Spring Return spring to brake strut Adjuster Toggle lever Anti-rattle pin : Apply PBC (Poly Butyl Cuprysil) grease or silicone-based grease Removal and Installation REMOVAL WARNING ...

Supplemental air bag warning labels
SRS Air Bag Warning Labels SRS Air Bag Warning Labels The warning labels are located on the surface of the sun visor. Warning labels about the supplemental frontimpact air bag system are placed in the vehicle as shown in the illustration. WARNINGExtreme Hazard! Do not us ...
