Nissan Rogue Service Manual: Back door window glass
Exploded View

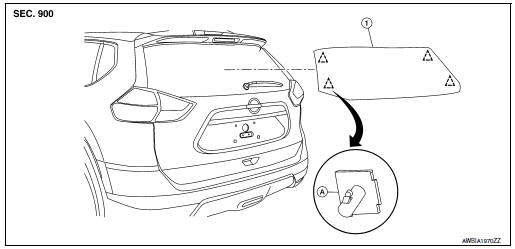

- Back door window glass
- Clip
Clip
Removal and Installation
REMOVAL
- Remove back door finisher. Refer to INT-38, "Removal and
Installation".
- Remove back door lock. Refer to DLK-263, "DOOR LOCK : Removal and
Installation" (for intelligent key)
or DLK-380, "DOOR LOCK : Removal and Installation" (for others).
- Remove the rear wiper arm and motor. Refer to WW-71, "Removal and
Installation".
- Disconnect harness connectors from back door window defogger.

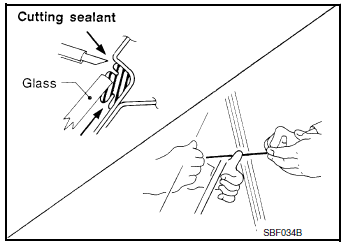

- Remove back door window glass using piano wire or power cutting
tool and an inflatable pump bag.
WARNING:
When cutting back door window glass from vehicle, always
wear safety glasses and heavy gloves to prevent glass
splinters from entering your eyes or cutting your hands.
CAUTION:
- Be careful not to scratch glass when removing.
- Do not set or stand glass on its edge. Small chips may
develop into cracks.
- Apply protective tape around back door window glass to
protect painted surface from damage.
NOTE:
Mark body and glass with matching marks if back door window glass is to be
reused.

INSTALLATION
Installation is in the reverse order of removal.
- Use genuine NISSAN Urethane Adhesive Kit (if available) or equivalent
and follow the instructions furnished
with it.
- Adhesive shall be continuously applied to assure watertightness.
Glass installation shall be finished within
five minutes after applying adhesive.
- While urethane adhesive is curing, open door window. This will
prevent glass from being forced out by passenger
compartment air pressure when door is closed.
- Start and finish urethane adhesive application at the bottom to
assure watertightness.
- Inform customer that vehicle should remain stationary until urethane
adhesive has completely cured (preferably
24 hours). Curing time varies with temperature and humidity.
WARNING:
- Keep heat and open flames away as primers and adhesive are
flammable.
- Materials contained in the kit are harmful if swallowed, and
may irritate skin and eyes. Avoid contact
with the skin and eyes.
- Use in an open, well ventilated location. Avoid breathing
vapors. They can be harmful if inhaled. If
affected by vapor inhalation, immediately move to an area with fresh air.
- Driving vehicle before urethane adhesive has completely cured
may affect performance of the windshield
in case of an accident.
CAUTION:

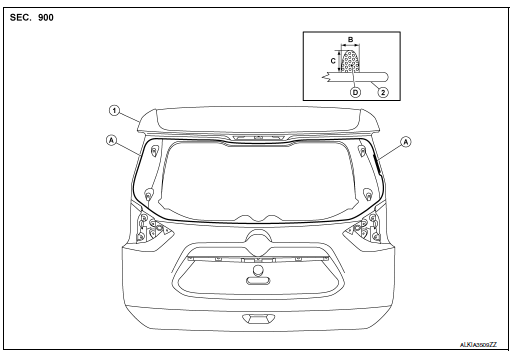

- Back door
- Back door window glass
- Primer and adhesive area
- 7.0 mm (0.28 in)
- 12.0 mm (0.47 in)
- Adhesive
REPAIRING WATER LEAKS FOR BACK DOOR GLASS
- Leaks can be repaired without removing and reinstalling glass.
- Determine extent of leak, if water leaks between urethane adhesive
material and body or glass.
- This can be done by applying water to glass area while pushing glass
outward.
- Apply primer (if necessary) and then urethane adhesive to leak
point to stop leak.
Inspection
REPAIRING WATER LEAKAGE FOR BACK DOOR WINDOW GLASS
Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane
adhesive material and body or glass.
This can be done by applying water to the back door window glass area while
pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point
to stop the leakage.
