NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS SYMPTOMS

Symptom Table

NOTE:

Before performing the diagnosis in the following table, check “SEC-150, "Work Flow"”.
Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check each symptom.
If the following symptoms are detected, check systems shown in the “Diagnosis/service procedure” column in this order.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

Mechanical key is not inserted into key cylinder.
Ignition knob switch is not depressed.

Conditions of vehicle (operating conditions)

VEHICLE SECURITY SYSTEM

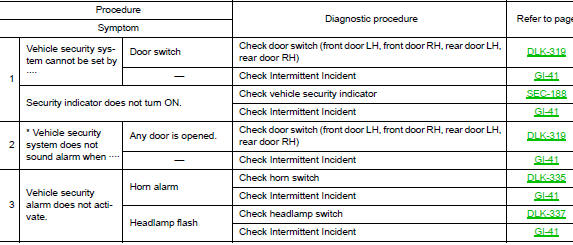

Symptom Table

Symptom Table

*: Check the system is in the armed phase.
