Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Roof / System description / Component parts

MOONROOF

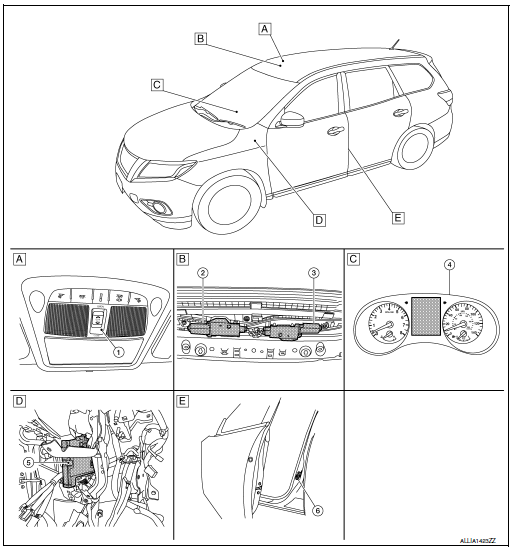

MOONROOF : Component Parts Location

Moonroof switch
View with headliner removed
Combination meter
Behind instrument panel (LH)
View with LH door open (RH similiar)

MOONROOF : Component Description

No	Component	Function
1	Moonroof switch	Transmits open/close operation signal to the moonroof and sunshade motor assembly.
2	Sunshade motor	The sunshade motor and CPU are integrated into one unit that opens/closes by input from the moonroof switch operation.
3	Moonroof motor	The moonroof motor and CPU are integrated into one unit that opens/closes by input from the moonroof switch operation.
4	Combination meter	Transmits the vehicle speed signal to BCM via CAN communication.
5	BCM	Supplies the power supply to the moonroof & sunshade motor assembly.
6	Front door switch LH	Detects door open/close condition and transmits to BCM.
